Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | PCFTR50 | |
| Bore diameter | d | 50 mm |
| Outside diameter | D | 150 mm |
| Width | B | 51.9 mm |
| Mass | ≈m | 2.04 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 403134 | |
| Brand | INA | |
| Base Type | PCFTR50 | |
| Old Designation | ["PCFTR50"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

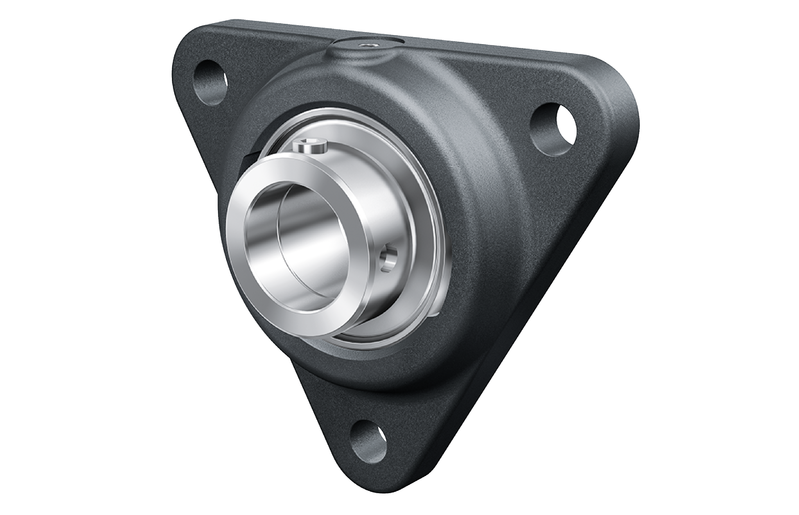

| Construction | Housing units PCFTR, three-bolt flanged housing units, cast iron, eccentric locking collar, P seals | |
| Short Description | Flanged housing unit |
Technical Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 50 mm | |
| Total Height Unit (U) | 51.9 mm | |
| Height Flange (H2) | 150 mm | |
| Thickness Of Flange (A1) | 16 mm |
