Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | PASE35 | |
| Bore diameter | d | 35 mm |
| Outside diameter | D | 94.5 mm |
| Width | B | 168 mm |
| Mass | ≈m | 0.82 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 401963 | |
| Brand | INA | |
| Base Type | PASE35 | |
| Old Designation | ["PASE 35 TN FA125.5"] | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

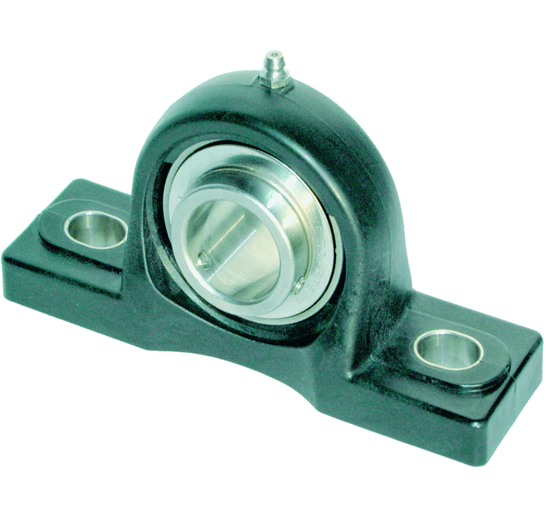

| Construction | Plummer block housing unit PASE..-TV, RIBB plastic | |
| Short Description | Plummer block housing unit |
Technical Data3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 168 mm | |
| Outside Diameter (D) | 94.5 mm | |
| Bore Diameter (D) | 35 mm |
