Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | PAGBA50 | |
| Width | B | 130 mm |
| Height | H | 98 mm |
| Mass | ≈m | 1.65 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1147873 | |
| Brand | INA | |
| Base Type | PAGBA50 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

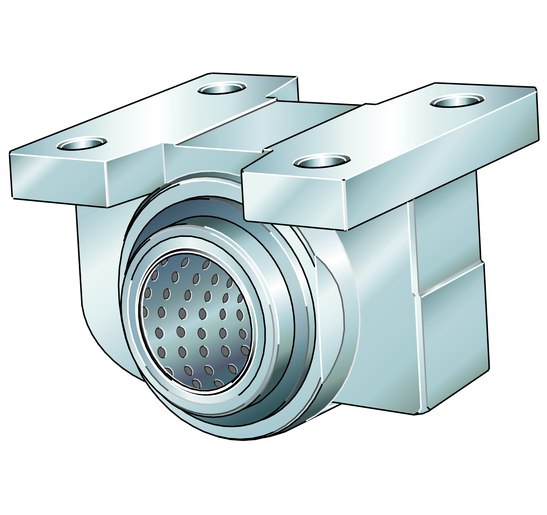

| Construction | Linear plein bearing and housing unit; sealed on all sides, with relubrication facility | |
| Short Description | Linear plain bearing and housing unit |
Technical Data22 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.1 m | |
| Total Width (B) | 130 mm | |
| Height (H) | 98 mm | |
| Mounting Dimension (Jb) | 108 mm | |
| Center Height (H2) | 50 mm | |
| Mounting Dimension (A5) | 65 mm | |
| Mounting Dimension (H6) | 12.5 mm | |
| Length Of Return Unit (L4) | 70 mm | |
| Lower Tolerance (Tol H2) | 0.015 mm | |
| Mounting Dimension (N3) | 15 mm | |
| Upper Tolerance (Tol H2) | 0.015 mm | |
| Mounting Dimension Oil Connector (A3) | 34 mm | |
| Mounting Dimension (N1) | 9.2 mm | |
| Diameter Of Ball Complement (Fw) | 50 mm | |
| Lower Tolerance (Tol Jl) | 0.2 mm | |
| Lower Tolerance (Tol A5) | 0.015 mm | |
| Upper Tolerance (Tol Jl) | 0.2 mm | |
| Upper Tolerance (Tol A5) | 0.015 mm | |
| Lower Tolerance (Tol Jb) | 0.2 mm | |
| Upper Tolerance (Tol Jb) | 0.2 mm | |
| Tolerance (Tol H6) | 0.5 mm | |
| Mounting Dimension (Jl) | 50 mm |
