Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | NE50 | |
| Bore diameter | d | 50 mm |
| Outside diameter | D | 110 mm |
| Width | B | 49.2 mm |
| Basic dynamic load rating | C | 62 kN |
| Basic static load rating | C0 | 38 kN |
| Fatigue load limit | Pu | 1.8 kN |
| Mass | ≈m | 1.82 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358527 | |
| Brand | INA | |
| Base Type | NE50 | |
| Old Designation | ["NE50-KRR-B"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

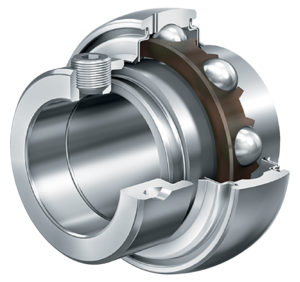

| Construction | Radial insert ball bearings NE..-KRR-B, spherical outer ring, location by eccentric locking collar, R seals on both sides | |
| Short Description | Radial insert ball bearing |
Technical Data13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 50 mm | |
| Outside Diameter (Dsp) | 110 mm | |
| Total Width (B) | 49.2 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 62,000 N | |
| Basic Static Load Rating, Radial (C0R) | 38,000 N | |
| Locking Collar Total Width (B1) | 66.75 mm | |
| Width Of Flats (W) | 5 mm | |
| Width, Outer Ring (C) | 29 mm | |
| Calculation Factor (F0) | 13.1 | |
| Rib Diameter Inner Ring (D1) | 68.8 mm | |
| Outside Diameter Locking Collar/Locknut (D3) | 75.8 mm | |
| Distance Raceway (S) | 24.6 mm | |
| Fatigue Load Limit, Radial (Cur) | 1,800 N |
