Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | MKUVE15 | |
| Width | B | 65 mm |
| Height | H | 85 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2079569 | |
| Brand | INA | |
| Base Type | MKUVE15 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

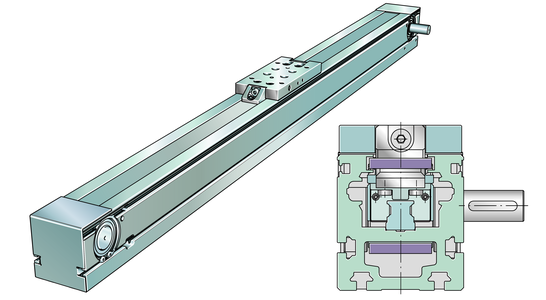

| Construction | Actuators with four-row linear recirculating bearing and guideway assembly, monorail guidance system and ball screw drive.Basic design, without ball screw drive (no spindle), with fixing slots in carriage | |
| Short Description | Linear actuator |
Technical Data24 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Total Width (B2) | 65 mm | |
| Total Height (H) | 85 mm | |
| Load Direction I: Compressive Load (Ci) | 11,700 N | |
| Load Direction I: Compressive Load (C0I) | 29,000 N | |
| Mass Of Carriage (Mlaw) | 0.87 kg | |
| Maximum Length Of Support Rail (L2 Max) | 5,850 mm | |
| Width Of End Plates (B5) | 64 mm | |
| Distance (A22) | 25 mm | |
| Height Of Bearing Housing (H5) | 84 mm | |
| Geometrical Moments Of Inertia Of Support Rail (Lz) | 77 cm4 | |
| Length Of Carriage (L) | 160 mm | |
| Length Of Return Unit (L4) | 25 mm | |
| Load Direction Ii: Tensile Load (Cii) | 11,700 N | |
| Load Direction Iii: Lateral Load (C0Iii) | 29,000 N | |
| Max. Permissible Static Moment Per Carriage (M0X) | 245 Nm | |
| Geometrical Moments Of Inertia Of Support Rail (Ly) | 96 cm4 | |
| Effective Length Factor Of Bellow (Fbl) | 1.2 mm | |
| Load Direction Iii: Lateral Load (Ciii) | 11,700 N | |
| Max. Permissible Static Moment Per Carriage (M0Y) | 500 Nm | |
| Safety Distance (S) | 10 mm | |
| Width Of Carriage (B1) | 63 mm | |
| Height Of Support Rail (H2) | 68 mm | |
| Max. Permissible Static Moment Per Carriage (M0Z) | 600 Nm | |
| Load Direction Ii: Tensile Load (C0Ii) | 29,000 N |
