Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | MKUVE15 | |
| Width | B | 65 mm |
| Height | H | 85 mm |
| Minimum operating temperature | Tmin | 0 °C |
| Maximum operating temperature | Tmax | 80 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2265503 | |
| Brand | INA | |
| Base Type | MKUVE15 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

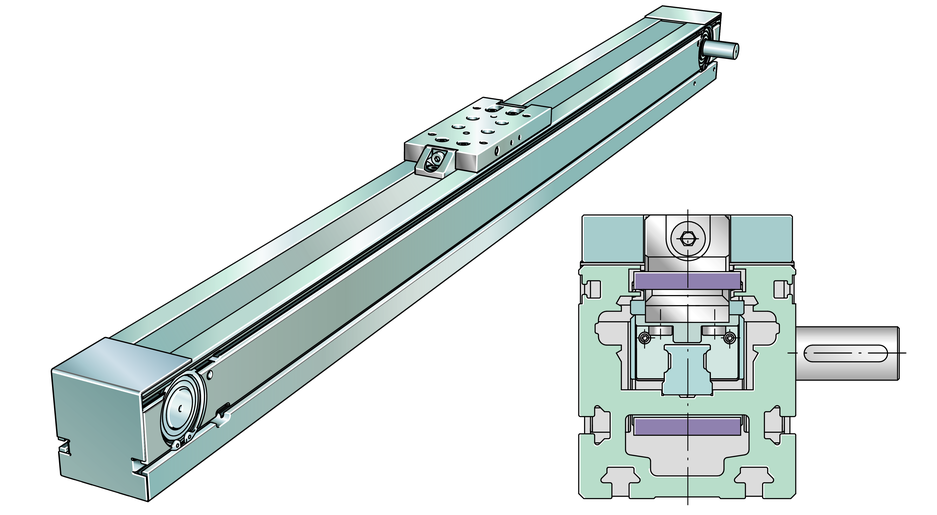

| Construction | Actuators with four-row linear recirculating ball bearing and guideway assembly, monorail guidance system and toothed belt drive. Basic carriage, one driven carriage | |
| Short Description | Linear actuator |
Technical Data45 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Total Width (B2) | 65 mm | |
| Total Height (H) | 85 mm | |
| Load Direction I: Compressive Load (Ci) | 7,200 N | |
| Load Direction I: Compressive Load (C0I) | 14,500 N | |
| Minimum Operating Temperatur (Tmin) | 0 °C | |
| Maximum Speed (Vmax) | 5 m/s | |
| Maximum Operating Temperatur (Tmax) | 80 °C | |
| Depth Of Thread (T87 Max) | 12 mm | |
| Mass Of Carriage (Mlaw) | 0.75 kg | |
| Maximum Length Of Support Rail (L2 Max) | 6,000 mm | |
| Tolerance ±0,2 (L87) | 60 mm | |
| Distance (A22) | 9.3 mm | |
| Mass Of Toothed Belt (Mass Of Toot) | 0.36 kg/m | |
| Permissible Toothed Belt Operating Force (Permissible) | 1,400 N | |
| Width Of Carriage (B1) | 63 mm | |
| Geometrical Moments Of Inertia Of Support Rail (Lz) | 107 cm4 | |
| Length Of Carriage (L) | 140 mm | |
| Length Of Return Unit (L4) | 69 mm | |
| Tolerance ±0,2 (H87) | 51 mm | |
| Tolerance H7 (D86) | 47 mm | |
| Load Direction Ii: Tensile Load (Cii) | 7,200 N | |
| Mass Moment Of Inertia Of Gears (Mass Moment) | 1.3 kg*cm2 | |
| Length (A11) | 178 mm | |
| Load Direction Iii: Lateral Load (C0Iii) | 14,500 N | |
| Maximum Acceleration (Amax) | 30 m/s2 | |
| Length Of Keyway (Nl85) | 25 mm | |
| Max. Permissible Static Moment Per Carriage (M0X) | 150 Nm | |
| Tolerance P9 (Nb85) | 5 mm | |
| Tolerance ±0,2 (Jl43) | 80 mm | |
| Geometrical Moments Of Inertia Of Support Rail (Ly) | 84 cm4 | |
| Max. Permissible Drive Torque (Max. Permiss) | 32 Nm | |
| Height Of Carriage (H1) | 14.2 mm | |
| Load Direction Iii: Lateral Load (Ciii) | 7,200 N | |
| Max. Permissible Static Moment Per Carriage (M0Y) | 100 Nm | |
| Length Of Drive Pin (L88) | 31 mm | |
| Safety Distance (S) | 85 mm | |
| Depth Of Thread (T43 Max) | 14 mm | |
| Feed (Mm/Rotation) (Feed (Mm/Rot) | 144 mm | |
| Tolerance H7 (D85) | 16 mm | |
| Depth Fit (T86) | 1.6 mm | |
| Height Of Support Rail (H2) | 70 mm | |
| Repeat Accurancy ± (Repeat Accur) | 0.1 mm | |
| Max. Permissible Static Moment Per Carriage (M0Z) | 100 Nm | |
| Depth Of Keyway (Nt85) | 3 mm | |
| Load Direction Ii: Tensile Load (C0Ii) | 14,500 N |
