Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | LFS52 | |
| Bore diameter | d | 10 mm |
| Width | B | 52 mm |
| Height | H | 34 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2074181 | |
| Brand | INA | |
| Base Type | LFS52 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

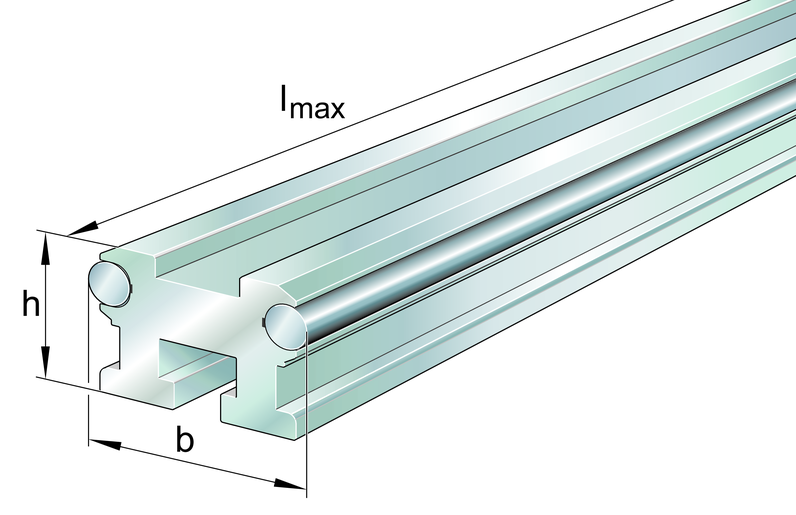

| Construction | solid profile, with T-slot and lateral slots, with two raceway shafts; corrosion-resistant design possible | |
| Short Description | Guideway |
Technical Data21 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 52 mm | |
| Height (H) | 34 mm | |
| Cross Sectional Area (Lfq) | 994 mm² | |
| Width (B1) | 46.5 mm | |
| Width (B4) | 18.5 mm | |
| Distance (Ez) | 16.8 mm | |
| Wider Resistance Torque (Wz) | 4,927 mm³ | |
| Height (H4) | 25.1 mm | |
| Width (B5) | 18.5 mm | |
| Total Height (H1) | 6.4 mm | |
| Height (H2) | 9 mm | |
| Increment (Jl) | 250 mm | |
| Second Moment Of Area (Lz) | 82,786 mm⁴ | |
| Wider Resistance Torque (Wy) | 7,327 mm³ | |
| Length Maximum (Lmax) | 8,000 mm | |
| Diameter Shaft (Dlw) | 10 mm | |
| Second Moment Of Area (Ly) | 170,350 mm⁴ | |
| Bore Diameter (N1) | 10 mm | |
| Width (B3) | 11 mm | |
| Distance (A2) | 42 mm | |
| Depth (T7) | 5 mm |
