Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | LFS32 | |
| Bore diameter | d | 6 mm |
| Width | B | 32 mm |
| Height | H | 20 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2074180 | |
| Brand | INA | |
| Base Type | LFS32 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

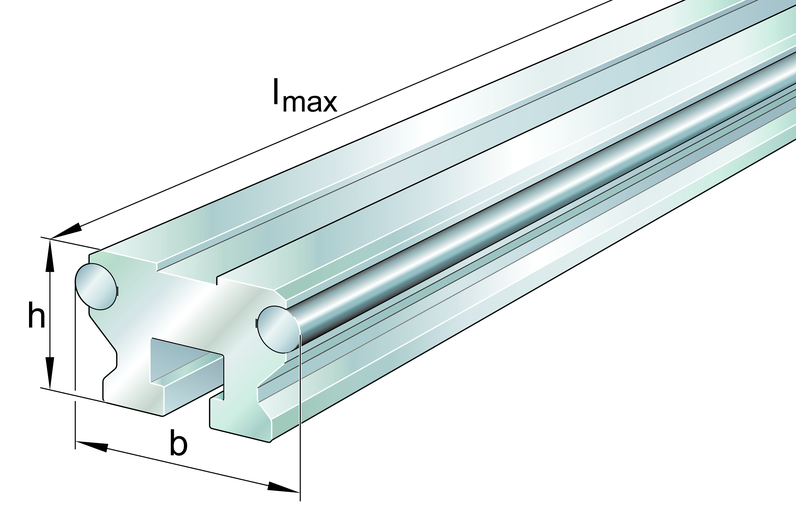

| Construction | solid profile, with T-slot, with two raceway shafts; corrosion-resistant design possible | |
| Short Description | Guideway |
Technical Data21 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 32 mm | |
| Height (H) | 20 mm | |
| Cross Sectional Area (Lfq) | 360 mm² | |
| Width (B1) | 24 mm | |
| Width (B4) | 10.5 mm | |
| Distance (Ez) | 11.1 mm | |
| Wider Resistance Torque (Wz) | 1,135 mm³ | |
| Height (H4) | 15 mm | |
| Width (B5) | 10.5 mm | |
| Total Height (H1) | 4 mm | |
| Height (H2) | 6 mm | |
| Increment (Jl) | 125 mm | |
| Second Moment Of Area (Lz) | 12,600 mm⁴ | |
| Wider Resistance Torque (Wy) | 1,400 mm³ | |
| Length Maximum (Lmax) | 4,000 mm | |
| Diameter Shaft (Dlw) | 6 mm | |
| Second Moment Of Area (Ly) | 19,600 mm⁴ | |
| Bore Diameter (N1) | 6 mm | |
| Width (B3) | 6.5 mm | |
| Distance (A2) | 26 mm | |
| Depth (T7) | 1.6 mm |
