Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 10 mm |
| Width | B | 25 mm |
| Height | H | 15 mm |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2072533 | |
| Brand | INA | |
| Base Type | LFS25 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

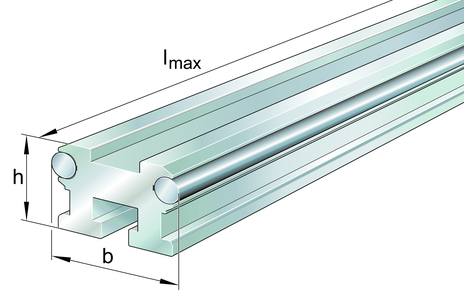

| Construction | solid profile, with two raceway shafts; corrosion-resistant design possible | |
| Short Description | Guideway |
Technical Data21 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 25 mm | |
| Height (H) | 15 mm | |
| Cross Sectional Area (Lfq) | 237 mm² | |
| Width (B1) | 21 mm | |
| Distance (Ar Min) | 10 mm | |
| Distance (Ez) | 7.5 mm | |
| Wider Resistance Torque (Wz) | 600 mm³ | |
| Height (H4) | 10.6 mm | |
| Total Height (H1) | 8.5 mm | |
| Increment (Jl) | 62.5 mm | |
| Second Moment Of Area (Lz) | 4,510 mm⁴ | |
| Wider Resistance Torque (Wy) | 608 mm³ | |
| Length Maximum (Lmax) | 2,400 mm | |
| Distance (Ar Max) | 54 mm | |
| Diameter Shaft (Dlw) | 6 mm | |
| Distance (Al Max) | 54 mm | |
| Distance (Al Min) | 10 mm | |
| Second Moment Of Area (Ly) | 6,390 mm⁴ | |
| Bore Diameter (N3) | 10 mm | |
| Bore Diameter (N1) | 5.5 mm | |
| Distance (A2) | 19 mm |
