Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 80 mm |
| Height | H | 32.5 mm |
| Mass | ≈m | 0.42 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1149065 | |
| Brand | INA | |
| Base Type | LFLL32-SF |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | non-locating bearing carriage, clearance-free | |

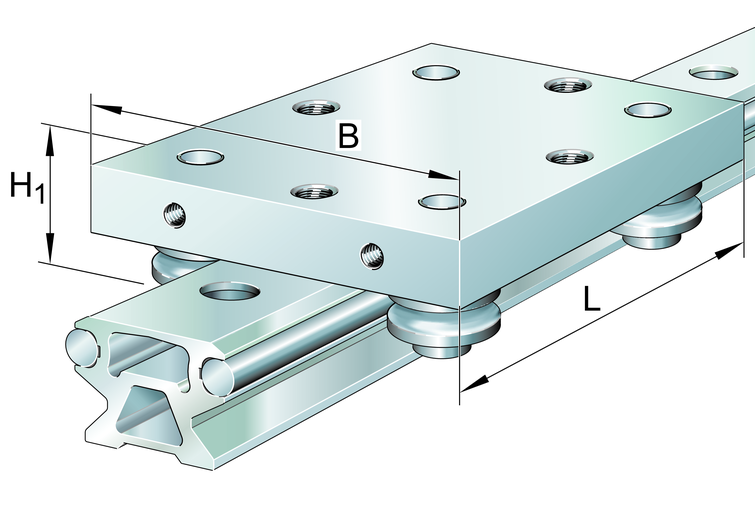

| Short Description | Carriage |
Technical Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length (L) | 90 mm | |
| Width (B) | 80 mm | |
| Height (H) | 32.5 mm | |
| Basic Dynamic Load Rating In Z Direction (Cz) | 9,000 N | |
| Basic Static Load Rating In Z Direction (C0Z) | 8,000 N | |
| Total Height Of Carriage And Rail At Lfs.. M (H) | 81.5 mm | |
| Static Moment About Y Axis (M0Y) | 250 Nm | |
| Total Height Of Carriage And Rail At Lfs, C, Ce, Cee, E, Ee, N, Nzz (H) | 35.5 mm | |
| Total Height Of Carriage And Rail At Lfs.. F, Fe (H) | 25.5 mm |
