Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 80 mm |
| Height | H | 43 mm |
| Mass | ≈m | 0.8 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 895120 | |
| Brand | INA | |
| Base Type | LFDL32-B |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | bogie carriage | |
| Short Description | Carriage |
Technical Data12 parameters
| Parameter | Symbol | Value |
|---|---|---|

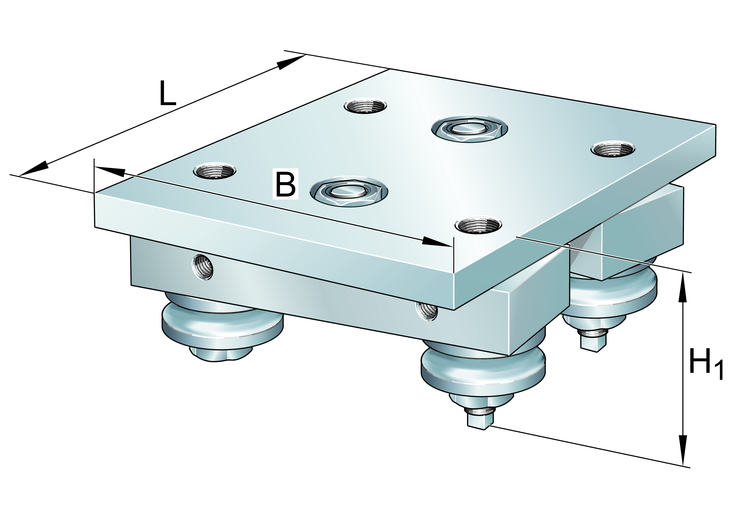

| Length (L) | 100 mm | |
| Width (B) | 80 mm | |
| Height (H) | 43 mm | |
| Basic Dynamic Load Rating In Y Direction (Cy) | 4,100 N | |
| Basic Static Load Rating In Y Direction (C0Y) | 2,400 N | |
| Basic Dynamic Load Rating In Z Direction (Cz) | 6,600 N | |
| Static Moment About Y Axis (M0Y) | 130 Nm | |
| Total Height Of Carriage And Rail At Lfs, C, Ce, Cee, E, Ee, N, Nzz (H) | 44.2 mm | |
| Static Moment About X Axis (M0X) | 30 Nm | |
| Basic Static Load Rating In Z Direction (C0Z) | 4,200 N | |
| Static Moment About Z Axis (M0Z) | 70 Nm | |
| Tightening Torque (Standard Version) (Ma) | 15 Nm |
