Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 120 mm |
| Height | H | 43.2 mm |
| Mass | ≈m | 1.006 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1148125 | |
| Brand | INA | |
| Base Type | LFL52-SF |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | open carriage, standard design, clearance-free | |
| Short Description | Carriage |
Technical Data15 parameters
| Parameter | Symbol | Value |
|---|---|---|

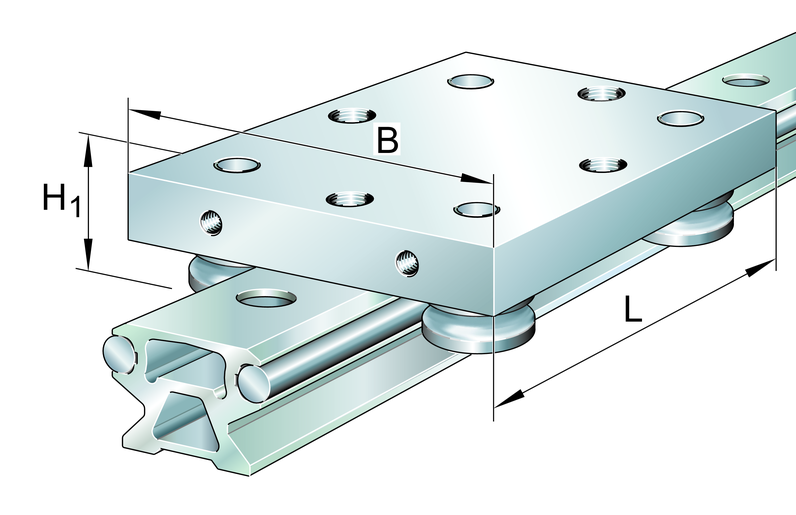

| Length (L) | 100 mm | |
| Width (B) | 120 mm | |
| Height (H) | 43.2 mm | |
| Basic Dynamic Load Rating In Y Direction (Cy) | 10,000 N | |
| Basic Static Load Rating In Y Direction (C0Y) | 5,200 N | |
| Total Height Of Carriage And Rail At Lfs.. M (H) | 118.9 mm | |
| Basic Dynamic Load Rating In Z Direction (Cz) | 16,800 N | |
| Static Moment About Y Axis (M0Y) | 290 Nm | |
| Total Height Of Carriage And Rail At Lfs, C, Ce, Cee, E, Ee, N, Nzz (H) | 54.3 mm | |
| Tightening Torque (Corrosion Resistant Version) (Ma) | 23 Nm | |
| Total Height Of Carriage And Rail At Lfs.. F, Fe (H) | 38.2 mm | |
| Static Moment About X Axis (M0X) | 110 Nm | |
| Basic Static Load Rating In Z Direction (C0Z) | 10,000 N | |
| Static Moment About Z Axis (M0Z) | 150 Nm | |
| Tightening Torque (Standard Version) (Ma) | 40 Nm |
