Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters

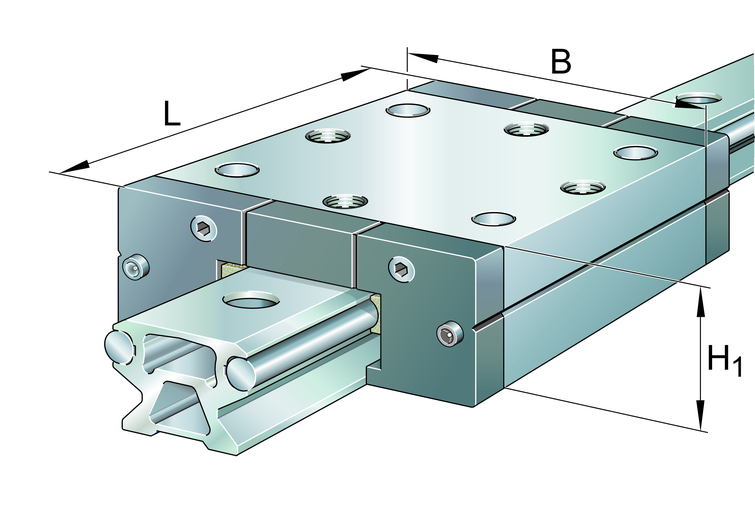

| Parameter | Symbol | Value |
|---|---|---|
| Width | B | 145 mm |
| Height | H | 53.8 mm |
| Mass | ≈m | 2.65 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 981628 | |
| Brand | INA | |
| Base Type | LFKL52-E-SF |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | compact carriage, wide, long design, clearance-free; corrosion-resistant design possible | |
| Short Description | Carriage |
Technical Data15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length (L) | 186 mm | |
| Width (B) | 145 mm | |
| Height (H) | 53.8 mm | |
| Basic Dynamic Load Rating In Y Direction (Cy) | 17,800 N | |
| Basic Static Load Rating In Y Direction (C0Y) | 8,900 N | |
| Total Height Of Carriage And Rail At Lfs.. M (H) | 125 mm | |
| Basic Dynamic Load Rating In Z Direction (Cz) | 28,400 N | |
| Static Moment About Y Axis (M0Y) | 800 Nm | |
| Total Height Of Carriage And Rail At Lfs, C, Ce, Cee, E, Ee, N, Nzz (H) | 60.4 mm | |
| Tightening Torque (Corrosion Resistant Version) (Ma) | 23 Nm | |
| Total Height Of Carriage And Rail At Lfs.. F, Fe (H) | 44.3 mm | |
| Static Moment About X Axis (M0X) | 180 Nm | |
| Basic Static Load Rating In Z Direction (C0Z) | 15,500 N | |
| Static Moment About Z Axis (M0Z) | 460 Nm | |
| Tightening Torque (Standard Version) (Ma) | 40 Nm |
