Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | LASE35 | |
| Bore diameter | d | 35 mm |
| Outside diameter | D | 163 mm |
| Width | B | 93 mm |
| Mass | ≈m | 1.649 kg |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1536133 | |
| Brand | INA | |
| Base Type | LASE35 | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

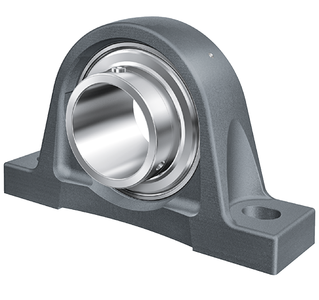

| Construction | Plummer block housing units LASE, cast iron housing, radial insert ball bearing with eccentric locking collar, L seals | |
| Short Description | Plummer block housing unit |
Technical Data3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 93 mm | |
| Outside Diameter (D) | 163 mm | |
| Bore Diameter (D) | 35 mm |
