Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters

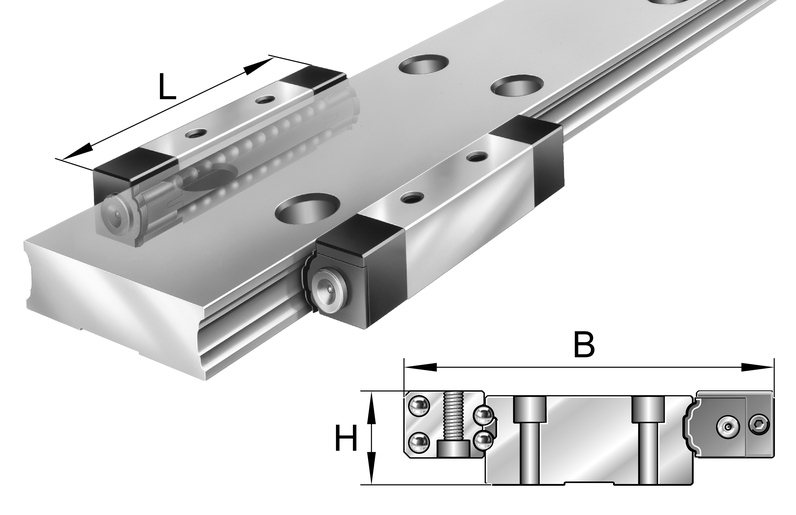

| Parameter | Symbol | Value |
|---|---|---|
| Series | KUVS10 | |
| Width | B | 31.8 mm |
| Height | H | 10 mm |
| Mass | ≈m | 0.024836 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 425460 | |
| Brand | INA | |
| Base Type | KUVS10 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | linear recirculating ball bearing units for guideway with raceways on both sides | |
| Short Description | Linear recirculating ball bearing unit |
Technical Data24 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Distance (Ar Min) | 20 mm | |
| Length (H1) | 3.4 mm | |
| Free Space, System Dimension (H1) | 0.5 mm | |
| Moment Ratings M0Z (M0Z) | 51 Nm | |
| Height System (H) | 11 mm | |
| Length Linear Recirculating Ball Bearing Units (L) | 47 mm | |
| Max. Length Rail (Lmax) | 1,960 mm | |
| Width (B) | 31.8 mm | |
| Height Linear Recirculating Ball Bearing Units (H2) | 10.5 mm | |
| Width System (B) | 51.6 mm | |
| Load Capacity Dyn (C0) | 10,600 N | |
| Distance (A5) | 6.9 mm | |
| Length (A11) | 29.8 mm | |
| Distance (Ar Max) | 34 mm | |
| Diameter (D1) | 3.8 mm | |
| Distance (Al Max) | 34 mm | |
| Distance (Al Min) | 20 mm | |
| Height (H) | 10 mm | |
| Tightening Torque (K1 Ma) | 2.5 Nm | |
| Dynamic Load Rating (C) | 5,700 N | |
| Moment Ratings M0Y (M0Y) | 51 Nm | |
| Distance (Jl) | 15 mm | |
| Moment Ratings M0X (M0X) | 203 Nm | |
| Tightening Torque (G2 Ma) | 1.5 Nm |
