Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KTHK16 | |
| Width | B | 43 mm |
| Height | H | 36.5 mm |
| Mass | ≈m | 0.16 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 982859 | |
| Brand | INA | |
| Base Type | KTHK16 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Linear ball bearing and housing unit; sealed, greased, with relubrication facility; corrosion-resistant design possible | |

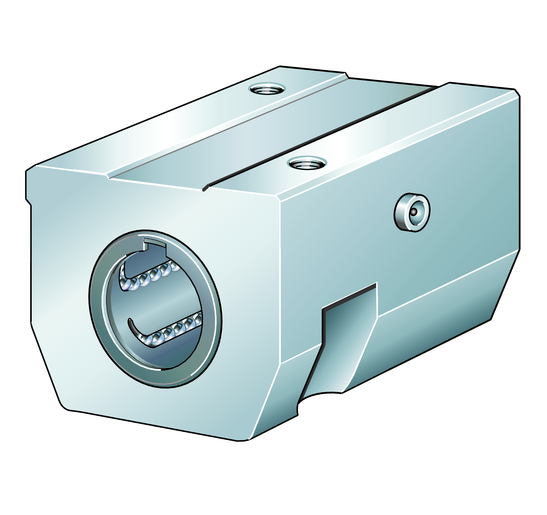

| Short Description | Linear Ball Bearing and Housing Unit |
Technical Data24 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.065 m | |
| Total Width (B) | 43 mm | |
| Height (H) | 36.5 mm | |
| Dynamic Load Rating (C) | 1,440 N | |
| Basic Static Load Capacity (C0) | 1,240 N | |
| Mounting Dimension (Jb) | 34 mm | |
| Center Height (H2) | 19 mm | |
| Mounting Dimension (A5) | 21.5 mm | |
| Mounting Dimension (H4) | 28.1 mm | |
| Mounting Dimension (B1) | 34 mm | |
| Mounting Dimension (H6) | 18 mm | |
| Lower Tolerance (Tol H2) | 0.014 mm | |
| Mounting Dimension (N3) | 10 mm | |
| Upper Tolerance (Tol H2) | 0.01 mm | |
| Mounting Dimension Oil Connector (A3) | 13 mm | |
| Mounting Dimension (N1) | 4.3 mm | |
| Mounting Dimension (T5) | 11 mm | |
| Diameter Of Ball Complement (Fw) | 16 mm | |
| Lower Tolerance (Tol Jl) | 0.15 mm | |
| Upper Tolerance (Tol Jl) | 0.15 mm | |
| Distance (Jl) | 40 mm | |
| Lower Tolerance (Tol Jb) | 0.15 mm | |
| Upper Tolerance (Tol Jb) | 0.15 mm | |
| Height Of Shaft Support Blocks (H5) | 6.9 mm |
