Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KTFS16 | |
| Width | B | 50 mm |
| Height | H | 40 mm |
| Mass | ≈m | 0.255 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 982904 | |
| Brand | INA | |
| Base Type | KTFS16 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

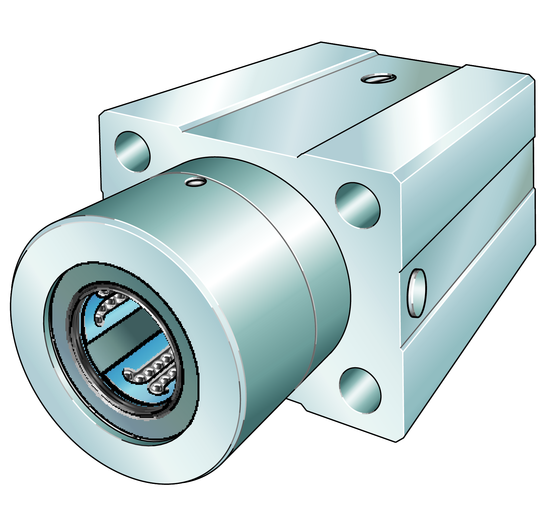

| Construction | Linear ball bearing and housing unit; with self-aligning linear ball bearing, sealed, greased, with relubrication facility | |
| Short Description | Linear Ball Bearing and Housing Unit |
Technical Data18 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.078 m | |
| Total Width (B) | 50 mm | |
| Height (H) | 40 mm | |
| Dynamic Load Rating (C) | 1,790 N | |
| Basic Static Load Capacity (C0) | 1,900 N | |
| Mounting Dimension (Jb) | 38 mm | |
| Diameter (N1) | 6.6 mm | |
| Diameter (D1) | 35 mm | |
| Lower Tolerance (Tol D2) | 0.3 mm | |
| Lower Tolerance (Tol Jh) | 0.15 mm | |
| Upper Tolerance (Tol D2) | 0.1 mm | |
| Upper Tolerance (Tol Jh) | 0.15 mm | |
| Distance (Jl4) | 39 mm | |
| Diameter (D2) | 35 mm | |
| Thread Depth (T5) | 18 mm | |
| Diameter Of Ball Complement (Fw) | 16 mm | |
| Lower Tolerance (Tol Jb) | 0.15 mm | |
| Upper Tolerance (Tol Jb) | 0.15 mm |
