Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KTBO16 | |
| Width | B | 50 mm |
| Height | H | 35 mm |
| Mass | ≈m | 0.35 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 981590 | |
| Brand | INA | |
| Base Type | KTBO16 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

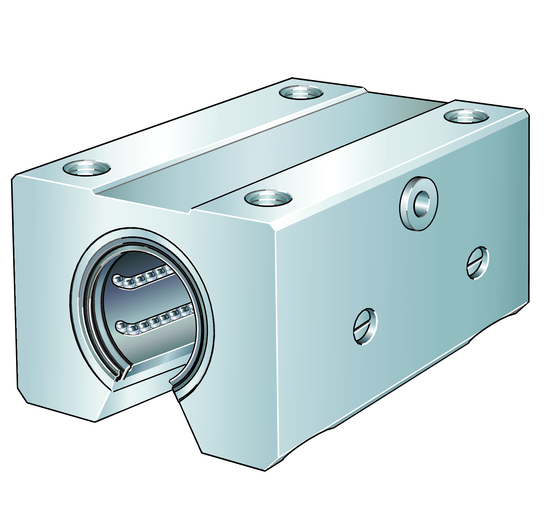

| Construction | Linear ball bearing and housing unit; open design, sealed, greased, with relubrication facility; corrosion-resistant design possible | |
| Short Description | Linear Ball Bearing and Housing Unit |
Technical Data22 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.084 m | |
| Total Width (B) | 50 mm | |
| Height (H) | 35 mm | |
| Dynamic Load Rating (C) | 1,290 N | |
| Basic Static Load Capacity (C0) | 1,240 N | |
| Mounting Dimension (Jb) | 36 mm | |
| Center Height (H2) | 22 mm | |
| Mounting Dimension (H6) | 29.5 mm | |
| Lower Tolerance (Tol H2) | 0.015 mm | |
| Mounting Dimension (N3) | 10 mm | |
| Upper Tolerance (Tol H2) | 0.015 mm | |
| Mounting Dimension Oil Connector (A3) | 8 mm | |
| Mounting Dimension (N1) | 5.3 mm | |
| Width Of Sector Opening (B2) | 10.1 mm | |
| Mounting Dimension (T5) | 13 mm | |
| Angle (Α) | 78 ° | |
| Diameter Of Ball Complement (Fw) | 16 mm | |
| Lower Tolerance (Tol Jl) | 0.15 mm | |
| Upper Tolerance (Tol Jl) | 0.15 mm | |
| Lower Tolerance (Tol Jb) | 0.15 mm | |
| Upper Tolerance (Tol Jb) | 0.15 mm | |
| Mounting Dimension (Jl) | 45 mm |
