Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KGSNS16 | |
| Width | B | 53 mm |
| Height | H | 42 mm |
| Mass | ≈m | 0.2 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 983308 | |
| Brand | INA | |
| Base Type | KGSNS16 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

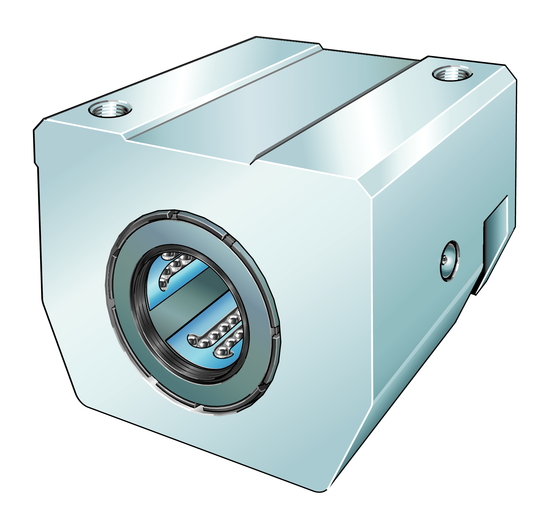

| Construction | Linear ball bearing and housing unit; with self-aligning linear ball bearing, slotted design, sealed, greased, with relubrication facility | |
| Short Description | Linear Ball Bearing and Housing Unit |
Technical Data22 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.037 m | |
| Total Width (B) | 53 mm | |
| Height (H) | 42 mm | |
| Dynamic Load Rating (C) | 1,430 N | |
| Basic Static Load Capacity (C0) | 1,550 N | |
| Mounting Dimension (Jb) | 40 mm | |
| Center Height (H2) | 22 mm | |
| Mounting Dimension (A5) | 26.5 mm | |
| Mounting Dimension (H4) | 29.3 mm | |
| Mounting Dimension (B1) | 40 mm | |
| Mounting Dimension (N4) | 4 mm | |
| Mounting Dimension (H6) | 21 mm | |
| Mounting Dimension (N3) | 10 mm | |
| Mounting Dimension (N1) | 5.3 mm | |
| Mounting Dimension (T5) | 13 mm | |
| Diameter Of Ball Complement (Fw) | 16 mm | |
| Lower Tolerance (Tol A5) | 0.01 mm | |
| Upper Tolerance (Tol Jl) | 0.15 mm | |
| Upper Tolerance (Tol A5) | 0.01 mm | |
| Distance (Jl) | 26 mm | |
| Height Of Shaft Support Blocks (H5) | 6.9 mm | |
| Width Across Flats (W) | 3 mm |
