Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KGSC40 | |
| Width | B | 110 mm |
| Height | H | 100 mm |
| Mass | ≈m | 1.65 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 982348 | |
| Brand | INA | |
| Base Type | KGSC40 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

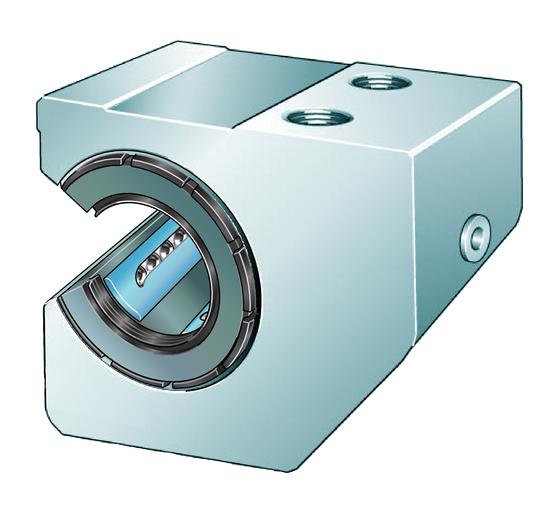

| Construction | Linear ball bearing and housing unit; with self-aligning linear ball bearing, open design, sealed, greased, with relubrication facility | |
| Short Description | Linear Ball Bearing and Housing Unit |
Technical Data28 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.08 m | |
| Total Width (B) | 110 mm | |
| Height (H) | 100 mm | |
| Dynamic Load Rating (C) | 10,200 N | |
| Basic Static Load Capacity (C0) | 9,600 N | |
| Center Height (H2) | 45 mm | |
| Mounting Dimension A 2 Tec (A2) | 75 mm | |
| Mounting Dimension (A5) | 32 mm | |
| Mounting Dimension (H4) | 60 mm | |
| Mounting Dimension (N4) | 12 mm | |
| Mounting Dimension (H6) | 67.6 mm | |
| Lower Tolerance (Tol H2) | 0.016 mm | |
| Mounting Dimension (N3) | 24 mm | |
| Upper Tolerance (Tol H2) | 0.008 mm | |
| Mounting Dimension (N1) | 15.5 mm | |
| Width Of Sector Opening (B2) | 18.2 mm | |
| Mounting Dimension (T5) | 36 mm | |
| Diameter Of Ball Complement (Fw) | 40 mm | |
| Angle (Α) | 56 ° | |
| Lower Tolerance (Tol A2) | 0.15 mm | |
| Lower Tolerance (Tol Jl) | 0.15 mm | |
| Lower Tolerance (Tol A5) | 0.01 mm | |
| Upper Tolerance (Tol Jl) | 0.15 mm | |
| Upper Tolerance (Tol A2) | 0.15 mm | |
| Upper Tolerance (Tol A5) | 0.01 mm | |
| Distance (Jl) | 48 mm | |
| Distance (L6) | 60 mm | |
| Height Of Shaft Support Blocks (H5) | 9.5 mm |
