Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KGHA20 | |
| Width | B | 47 mm |
| Height | H | 48.5 mm |
| Mass | ≈m | 0.303 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 981471 | |
| Brand | INA | |
| Base Type | KGHA20 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Linear Ball Bearing and Housing Units, Sealed, Greased, Corrosion-resistant Design Possible | |

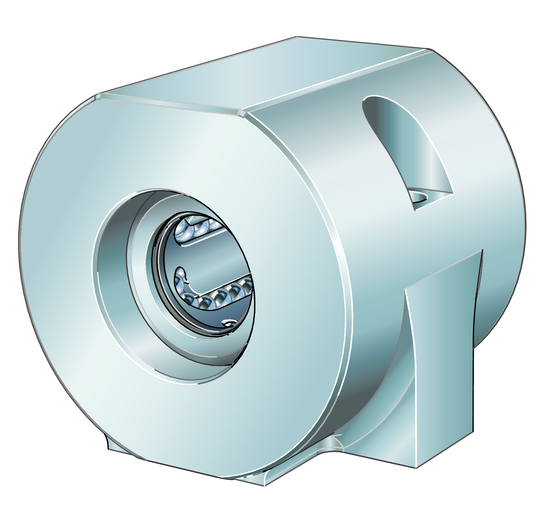

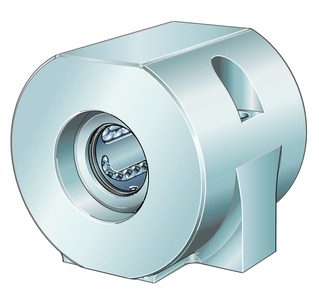

| Short Description | Linear Ball Bearing and Housing Unit |
Technical Data15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.039 m | |
| Total Width (B) | 47 mm | |
| Total Height (H) | 48.5 mm | |
| Dynamic Load Rating (C) | 1,110 N | |
| Basic Static Load Capacity (C0) | 790 N | |
| Bore Diameter (Fw) | 20 mm | |
| Mounting Dimension (Jb) | 38 mm | |
| Center Height (H2) | 25 mm | |
| Mounting Dimension (H6) | 29 mm | |
| Mounting Dimension (N3) | 8.1 mm | |
| Mounting Dimension (N1) | 5.1 mm | |
| Mounting Dimension (T5) | 15 mm | |
| Tolerance (Tol Jb) | 0.1 mm | |
| Tolerance (Tol L) | 0.5 mm | |
| Tolerance (Tol H2) | 0.015 mm |
