Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KGBS40 | |
| Width | B | 108 mm |
| Height | H | 83.5 mm |
| Mass | ≈m | 1.43 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 982782 | |
| Brand | INA | |
| Base Type | KGBS40 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

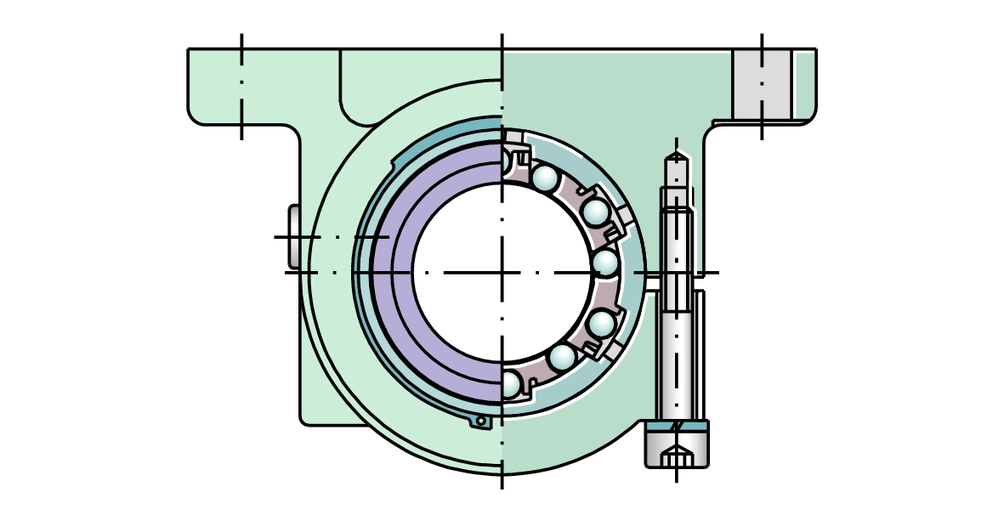

| Construction | Linear ball bearing and housing unit; adjustable, sealed, greased, with relubrication facility; corrosion-resistant design possible | |
| Short Description | Linear Ball Bearing and Housing Unit |
Technical Data24 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.08 m | |
| Total Width (B) | 108 mm | |
| Height (H) | 83.5 mm | |
| Dynamic Load Rating (C) | 6,000 N | |
| Basic Static Load Capacity (C0) | 4,400 N | |
| Mounting Dimension (Jb) | 94 mm | |
| Center Height (H2) | 45 mm | |
| Mounting Dimension (A5) | 54 mm | |
| Mounting Dimension (B1) | 77 mm | |
| Distance (A22) | 56 mm | |
| Mounting Dimension (H6) | 12 mm | |
| Lower Tolerance (Tol H2) | 0.015 mm | |
| Mounting Dimension (N3) | 15 mm | |
| Upper Tolerance (Tol H2) | 0.015 mm | |
| Distance (J L4) | 28 mm | |
| Mounting Dimension Oil Connector (A3) | 30 mm | |
| Mounting Dimension (N1) | 9 mm | |
| Length Puller Arms No. 21 (A21) | 40 mm | |
| Diameter Of Ball Complement (Fw) | 40 mm | |
| Lower Tolerance (Tol A5) | 0.02 mm | |
| Upper Tolerance (Tol A5) | 0.02 mm | |
| Lower Tolerance (Tol Jb) | 0.2 mm | |
| Upper Tolerance (Tol Jb) | 0.2 mm | |
| Width Across Flats (W) | 4 mm |
