Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KGBAO20 | |
| Width | B | 60 mm |
| Height | H | 44.5 mm |
| Mass | ≈m | 0.17 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 983186 | |
| Brand | INA | |
| Base Type | KGBAO20 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Linear ball bearing and housing unit; open design, sealed, greased, with relubrication facility; corrosion-resistant design possible | |

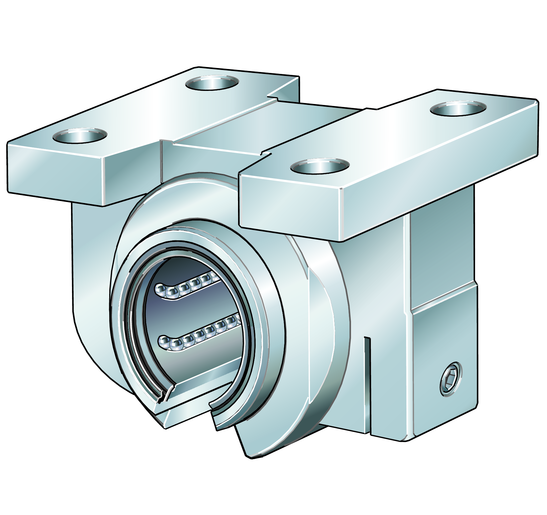

| Short Description | Linear Ball Bearing and Housing Unit |
Technical Data28 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.045 m | |
| Total Width (B) | 60 mm | |
| Height (H) | 44.5 mm | |
| Dynamic Load Rating (C) | 1,600 N | |
| Basic Static Load Capacity (C0) | 1,280 N | |
| Mounting Dimension (Jb) | 45 mm | |
| Mounting Dimension Oil Connector (A3) | 11 mm | |
| Mounting Dimension (A5) | 30 mm | |
| Mounting Dimension (H6) | 6.7 mm | |
| Length Of Return Unit (L4) | 42 mm | |
| Lower Tolerance (Tol H2) | 0.01 mm | |
| Mounting Dimension (N3) | 8 mm | |
| Upper Tolerance (Tol H2) | 0.01 mm | |
| Center Height (H2) | 25 mm | |
| Mounting Dimension (N1) | 4.7 mm | |
| Width Of Sector Opening (B2) | 10 mm | |
| Angle (Α) | 60 ° | |
| Diameter Of Ball Complement (Fw) | 20 mm | |
| Lower Tolerance (Tol Jl) | 0.15 mm | |
| Lower Tolerance (Tol A5) | 0.01 mm | |
| Upper Tolerance (Tol Jl) | 0.15 mm | |
| Upper Tolerance (Tol A5) | 0.01 mm | |
| Lower Tolerance (Tol Jb) | 0.15 mm | |
| Upper Tolerance (Tol Jb) | 0.15 mm | |
| Max. Tightening Torque (M W1 Ma) | 1.5 Nm | |
| Tolerance (Tol H6) | 0.5 mm | |
| Width Across Flats (W1) | 2.5 mm | |
| Mounting Dimension (Jl) | 32 mm |
