Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | KBK10X13X14,5 | |
| Bore diameter | d | 10 mm |
| Outside diameter | D | 13 mm |
| Width | B | 14.5 mm |
| Basic dynamic load rating | C | 5.4 kN |
| Basic static load rating | C0 | 6.6 kN |
| Fatigue load limit | Pu | 0.92 kN |
| Limiting speed | nG | 29500 r/min |
| Mass | ≈m | 0.00467 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 140 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 381331 | |
| Brand | INA | |
| Base Type | KBK10X13X14,5 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

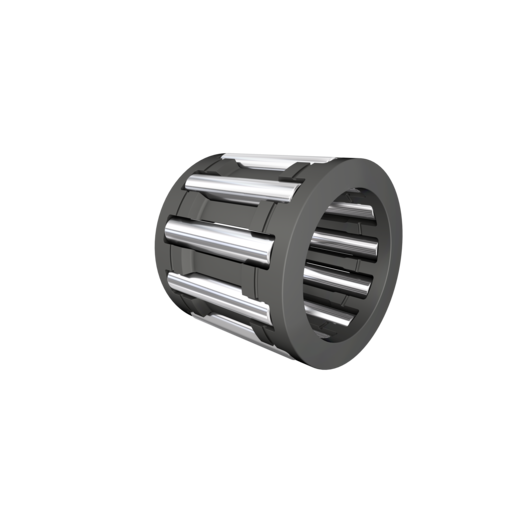

| Construction | Needle roller cage assembly KBK, single row, similar KBK, piston pin bearing | |
| Short Description | Needle roller cage assembly |
Technical Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Under Roller Diameter (Fw) | 10 mm | |
| Outside Diameter Of Needle Roller Complement (Ew) | 13 mm | |
| Width (Bc) | 14.5 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 5,400 N | |
| Basic Static Load Rating, Radial (C0R) | 6,600 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Operating Temperature Max. (Tmax) | 140 °C | |
| Limiting Speed (Limiting Spe) | 29,500 1/min | |
| Fatigue Load Limit, Radial (Cur) | 920 N |
