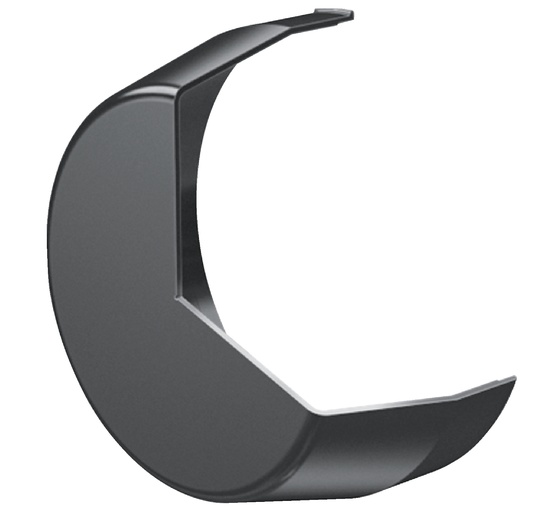

INA KASK05-S-G-HLA

End cap technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Mass≈m: 0.009 kg
Height Of Cap (H): 25 mm
Inner Diameter (D): 25 mm
Outer Diameter (D): 55 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications3 parameters

Core specifications
Parameter	Symbol	Value
Series		KASK05
Height	H	25 mm
Mass	≈m	0.009 kg

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		426129
Brand		INA
Base Type		KASK05

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		End cap, housing radial insert ball bearing
Short Description		End cap

Technical Data3 parameters

Technical Data
Parameter	Symbol	Value
Height Of Cap (H)		25 mm
Inner Diameter (D)		25 mm
Outer Diameter (D)		55 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA KASK05-S-G-HLA
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
