Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 20 mm |
| Outside diameter | D | 26 mm |
| Width | B | 20 mm |
| Basic dynamic load rating | C | 22.4 kN |
| Basic static load rating | C0 | 48 kN |
| Fatigue load limit | Pu | 6.7 kN |
| Reference speed | nref | 7200 r/min |
| Mass | ≈m | 0.0279 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 140 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 382224 | |
| Brand | INA | |
| Base Type | HN2020 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Drawn cup needle roller bearings with open ends HN, full complement needle roller set | |
| Short Description | Drawn cup needle roller bearing open end |
Technical Data11 parameters
| Parameter | Symbol | Value |
|---|---|---|

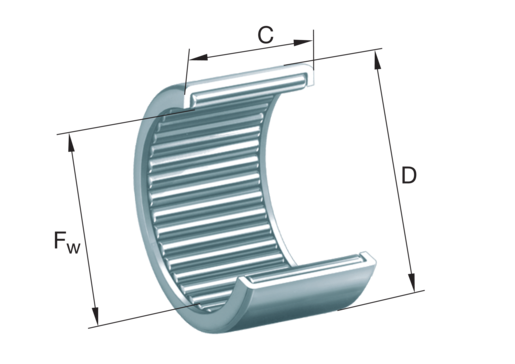

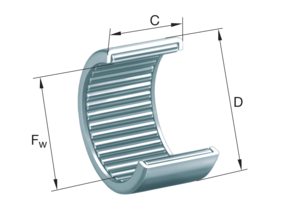

| Under Roller Diameter (Fw) | 20 mm | |
| Outside Diamater (D) | 26 mm | |
| Width, Outer Ring (C) | 20 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 22,400 N | |
| Basic Static Load Rating, Radial (C0R) | 48,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed For Grease Lubrication (Ng Grea) | 5,400 1/min | |
| Operating Temperature Max. (Tmax) | 140 °C | |
| Reference Speed (Nϑr) | 7,200 1/min | |
| Minimum Chamfer Dimension (Rmin) | 0.8 mm | |
| Fatigue Load Limit, Radial (Cur) | 6,700 N |
