Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | HFL0615 | |
| Bore diameter | d | 6 mm |
| Outside diameter | D | 10 mm |
| Width | B | 15 mm |
| Mass | ≈m | 0.003825 kg |
| Minimum operating temperature | Tmin | -10 °C |
| Maximum operating temperature | Tmax | 70 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 407451 | |
| Brand | INA | |
| Base Type | HFL0615 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Drawn Cup roller clutches HFL, with plain or rolling bearing arrangement, steel springs, knurled outer ring | |
| Short Description | Drawn cup roller clutch |

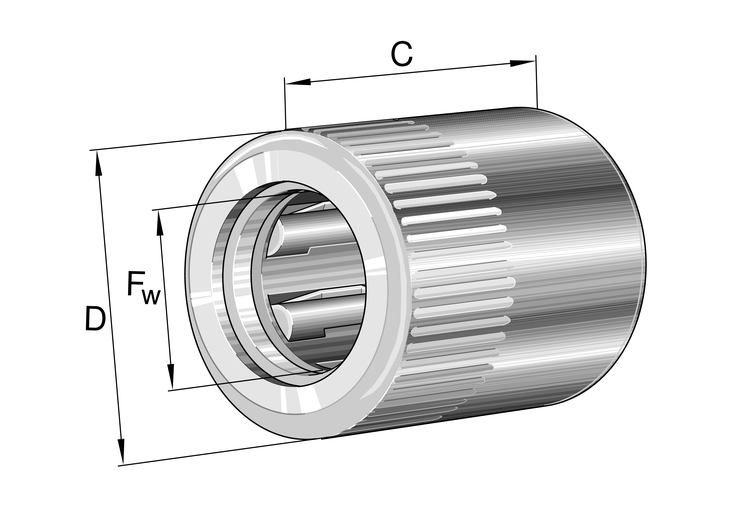

Technical Data11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Under Roller Diameter (Fw) | 6 mm | |
| Outside Diamater (D) | 10 mm | |
| Width, Outer Ring (C) | 15 mm | |
| Operating Temperature Min. (Tmin) | -10 °C | |
| Operating Temperature Max. (Tmax) | 70 °C | |
| Limiting Speed For Rotating Shaft (Ngw) | 23,000 1/min | |
| Permissible Radial Load (Fr Max) | 110 N | |
| Limiting Load ((Fr*N)M) | 18,000 N/min | |
| Limiting Speed For Rotating Outer Ring (Nga) | 13,000 1/min | |
| Minimum Chamfer Dimension (Rmin) | 0.3 mm | |
| Permissible Torque (Md Per) | 0.5 Nm |
