Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GYE50 | |
| Bore diameter | d | 50 mm |
| Outside diameter | D | 90 mm |
| Width | B | 51.6 mm |
| Basic dynamic load rating | C | 35 kN |
| Basic static load rating | C0 | 23.2 kN |
| Mass | ≈m | 0.748 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358891 | |
| Brand | INA | |
| Base Type | GYE50 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

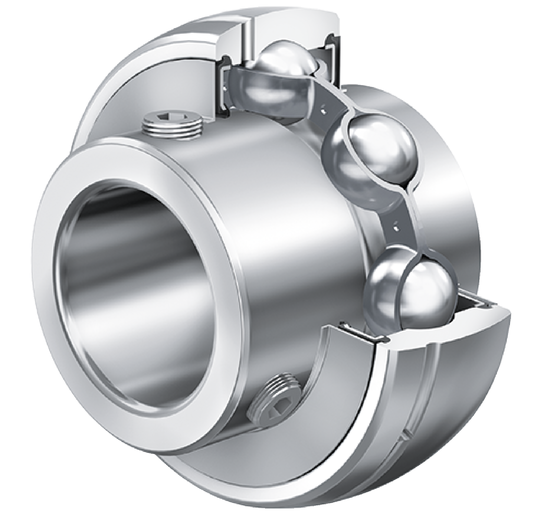

| Construction | Radial insert ball bearing GYE..-KRR-B-FA107-VA | |
| Short Description | Radial insert ball bearing |
Technical Data12 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 50 mm | |
| Outside Diameter (Dsp) | 90 mm | |
| Total Width (B) | 51.6 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 35,000 N | |
| Basic Static Load Rating, Radial (C0R) | 23,200 N | |
| Distance To Lubrication Hole (Ca) | 6.9 mm | |
| Width Of Flats (W) | 5 mm | |
| Width, Outer Ring (C) | 23 mm | |
| Rib Diameter Inner Ring (D1) | 62.92 mm | |
| Sealing Total Width (C2) | 23.6 mm | |
| Distance Thread (A) | 9 mm | |
| Distance Raceway (S) | 19 mm |
