Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GY1112 | |
| Bore diameter | d | 44.45 mm |
| Outside diameter | D | 85 mm |
| Width | B | 49.2 mm |
| Basic dynamic load rating | C | 32.5 kN |
| Basic static load rating | C0 | 20.4 kN |
| Fatigue load limit | Pu | 0.94 kN |
| Mass | ≈m | 0.674 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358464 | |
| Brand | INA | |
| Base Type | GY1112 | |
| Old Designation | ["GY 1112 KRRB-AS2/V"] | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

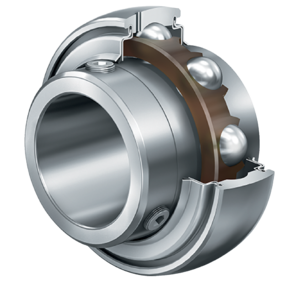

| Construction | Radial insert ball bearing GY..-KRR-B-AS2/V | |
| Short Description | Radial insert ball bearing |
Technical Data17 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 44.45 mm | |
| Outside Diameter (Dsp) | 85 mm | |
| Total Width (B) | 49.2 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 32,500 N | |
| Basic Static Load Rating, Radial (C0R) | 20,400 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Distance To Lubrication Hole (Ca) | 6.4 mm | |
| Width, Outer Ring (C) | 22 mm | |
| Calculation Factor (F0) | 14.1 | |
| Rib Diameter Inner Ring (D1) | 57.9 mm | |
| Sealing Total Width (C2) | 25.7 mm | |
| Distance Thread (A) | 8 mm | |
| Outside Diameter Seal (D1) | 71.7 mm | |
| Distance Raceway (S) | 19 mm | |
| Bore Diameter, Inch (D) | 1.75 in | |
| Fatigue Load Limit, Radial (Cur) | 940 N |
