Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GSH30 | |
| Outside diameter | D | 62 mm |
| Width | B | 18 mm |
| Basic dynamic load rating | C | 18.9 kN |
| Basic static load rating | C0 | 11.3 kN |
| Fatigue load limit | Pu | 0.6 kN |
| Mass | ≈m | 0.28 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358440 | |
| Brand | INA | |
| Base Type | GSH30 | |
| Old Designation | ["GSH30-2RSR-B"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

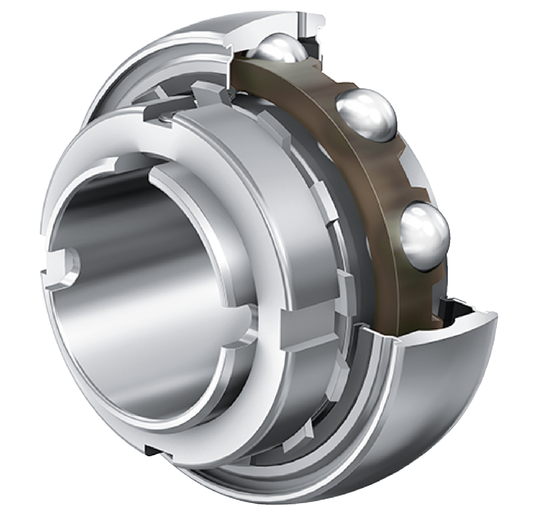

| Construction | Radial insert ball bearings GSH..-2RSR-B, spherical outer ring, location by adapter sleeve, RSR seals on both sides | |
| Short Description | Radial insert ball bearing |
Technical Data12 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Outside Diameter (Dsp) | 62 mm | |
| Total Width (B) | 18 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 18,900 N | |
| Basic Static Load Rating, Radial (C0R) | 11,300 N | |
| Distance To Lubrication Hole (Ca) | 4.7 mm | |
| Width Retaining Slot (B) | 5 mm | |
| Width, Outer Ring (C) | 18 mm | |
| Calculation Factor (F0) | 14 | |
| Hight Retaining Slot Adapter Sleeve (T) | 5 mm | |
| Outside Diameter Locking Collar/Locknut (D3) | 45 mm | |
| Distance Raceway (S) | 9 mm | |
| Fatigue Load Limit, Radial (Cur) | 600 N |
