Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GRAE40 | |
| Bore diameter | d | 40 mm |
| Outside diameter | D | 80 mm |
| Width | B | 30.2 mm |
| Basic dynamic load rating | C | 32.5 kN |
| Basic static load rating | C0 | 19.8 kN |
| Fatigue load limit | Pu | 1.03 kN |
| Mass | ≈m | 0.63 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358386 | |
| Brand | INA | |
| Base Type | GRAE40 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

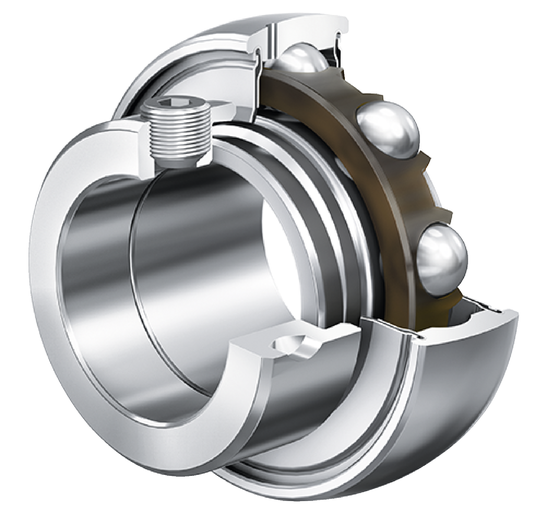

| Construction | Radial insert ball bearing GRAE..-NPP-B-FA107/125.5 | |
| Short Description | Radial insert ball bearing |
Technical Data16 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 40 mm | |
| Outside Diameter (Dsp) | 80 mm | |
| Total Width (B) | 30.2 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 32,500 N | |
| Basic Static Load Rating, Radial (C0R) | 19,800 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Locking Collar Total Width (B1) | 43.8 mm | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Distance To Lubrication Hole (Ca) | 6.4 mm | |
| Width Of Flats (W) | 5 mm | |
| Width, Outer Ring (C) | 21 mm | |
| Calculation Factor (F0) | 13.6 | |
| Outside Diameter Locking Collar/Locknut (D3) | 58 mm | |
| Distance Raceway (S) | 11 mm | |
| Rib Diameter Sealing Inner Ring (D2) | 49.4 mm | |
| Fatigue Load Limit, Radial (Cur) | 1,030 N |
