Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GRAE35 | |
| Bore diameter | d | 35 mm |
| Outside diameter | D | 72 mm |
| Width | B | 25.4 mm |
| Basic dynamic load rating | C | 25.5 kN |
| Basic static load rating | C0 | 15.3 kN |
| Fatigue load limit | Pu | 0.65 kN |
| Mass | ≈m | 0.47 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358846 | |
| Brand | INA | |
| Base Type | GRAE35 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

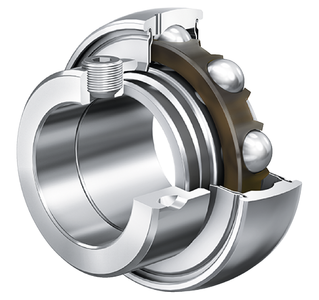

| Construction | Radial insert ball bearing GRAE..-NPP-B | |
| Short Description | Radial insert ball bearing |
Technical Data16 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 35 mm | |
| Outside Diameter (Dsp) | 72 mm | |
| Total Width (B) | 25.4 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 25,500 N | |
| Basic Static Load Rating, Radial (C0R) | 15,300 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Locking Collar Total Width (B1) | 39 mm | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Distance To Lubrication Hole (Ca) | 5.6 mm | |
| Width Of Flats (W) | 5 mm | |
| Width, Outer Ring (C) | 19 mm | |
| Calculation Factor (F0) | 13.8 | |
| Outside Diameter Locking Collar/Locknut (D3) | 55 mm | |
| Distance Raceway (S) | 9.5 mm | |
| Rib Diameter Sealing Inner Ring (D2) | 44.6 mm | |
| Fatigue Load Limit, Radial (Cur) | 650 N |
