Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GRAE25 | |
| Bore diameter | d | 25 mm |
| Outside diameter | D | 52 mm |
| Width | B | 21.4 mm |
| Basic dynamic load rating | C | 14.9 kN |
| Basic static load rating | C0 | 7.8 kN |
| Mass | ≈m | 0.133 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1974396 | |
| Brand | INA | |
| Base Type | GRAE25 |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|

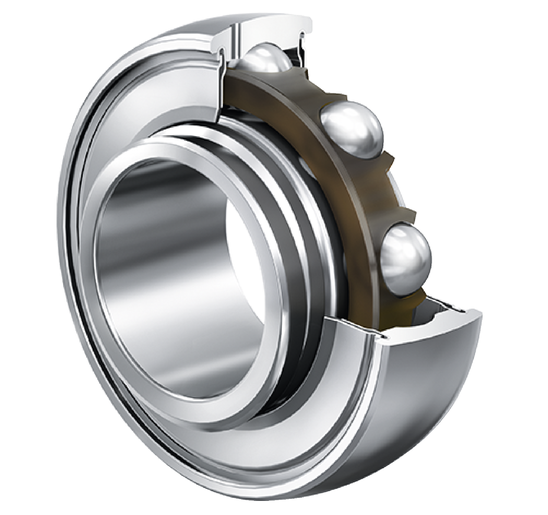

| Short Description | Radial insert ball bearing |
Technical Data11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 25 mm | |
| Outside Diameter (Dsp) | 52 mm | |
| Total Width (B) | 21.4 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 14,900 N | |
| Basic Static Load Rating, Radial (C0R) | 7,800 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Distance To Lubrication Hole (Ca) | 3.9 mm | |
| Width, Outer Ring (C) | 15 mm | |
| Distance Raceway (S) | 7.5 mm | |
| Rib Diameter Sealing Inner Ring (D2) | 30.64 mm |
