Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GNE60 | |
| Bore diameter | d | 60 mm |
| Outside diameter | D | 130 mm |
| Width | B | 52 mm |
| Basic dynamic load rating | C | 82 kN |
| Basic static load rating | C0 | 52 kN |
| Fatigue load limit | Pu | 2.46 kN |
| Mass | ≈m | 2.02 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358368 | |
| Brand | INA | |
| Base Type | GNE60 | |
| Old Designation | ["GNE60-KRR-B-OSE"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

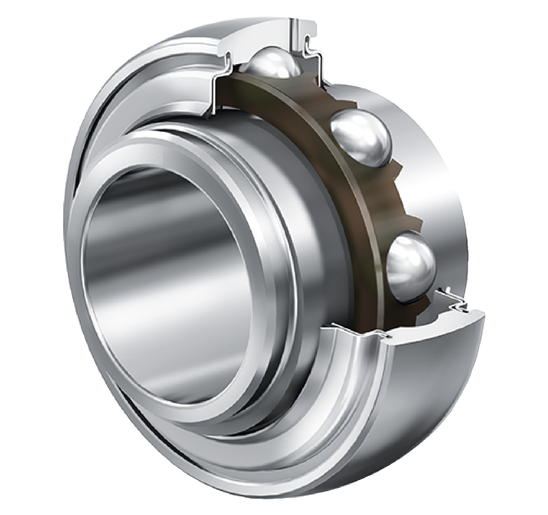

| Construction | Radial insert ball bearing GNE..-XL-KRR-B-OSE | |
| Short Description | Radial insert ball bearing |
Technical Data13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 60 mm | |
| Outside Diameter (Dsp) | 130 mm | |
| Total Width (B) | 52 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 82,000 N | |
| Basic Static Load Rating, Radial (C0R) | 52,000 N | |
| Distance To Lubrication Hole (Ca) | 11.2 mm | |
| Width, Outer Ring (C) | 33 mm | |
| Calculation Factor (F0) | 13.2 | |
| Rib Diameter Inner Ring (D1) | 79.4 mm | |
| Sealing Total Width (C2) | 37.2 mm | |
| Outside Diameter Seal (D1) | 109 mm | |
| Distance Raceway (S) | 23 mm | |
| Fatigue Load Limit, Radial (Cur) | 2,460 N |
