Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GE25 | |
| Bore diameter | d | 25 mm |
| Outside diameter | D | 52 mm |
| Width | B | 34.9 mm |
| Basic dynamic load rating | C | 14 kN |
| Basic static load rating | C0 | 7.8 kN |
| Mass | ≈m | 0.236 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 100 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1974390 | |
| Brand | INA | |
| Base Type | GE25 |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|

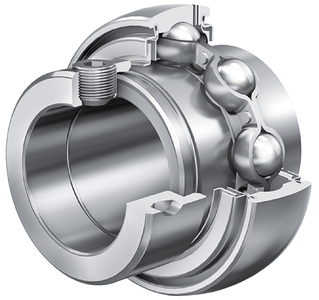

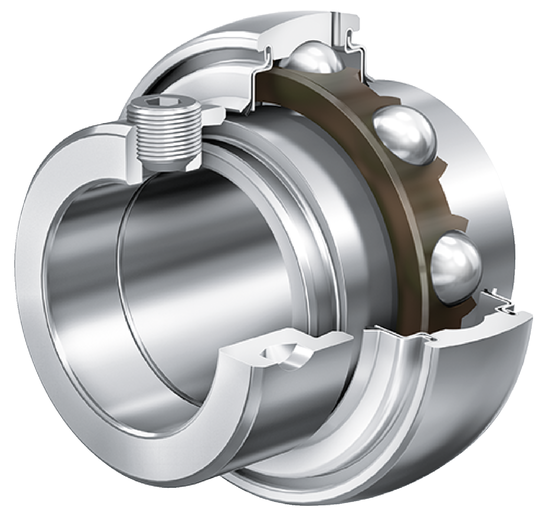

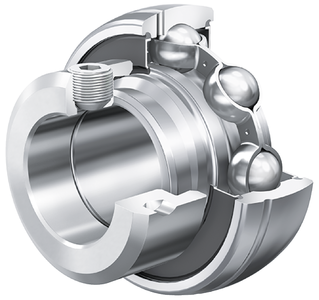

| Short Description | Radial insert ball bearing |
Technical Data11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 25 mm | |
| Outside Diameter (Dsp) | 52 mm | |
| Total Width (B) | 34.9 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 14,000 N | |
| Basic Static Load Rating, Radial (C0R) | 7,800 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Locking Collar Total Width (B1) | 44.5 mm | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Width Of Flats (W) | 3 mm | |
| Width, Outer Ring (C) | 15 mm | |
| Outside Diameter Locking Collar/Locknut (D3) | 37.5 mm |
