Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GE20 | |
| Bore diameter | d | 20 mm |
| Outside diameter | D | 47 mm |
| Width | B | 21.5 mm |
| Basic dynamic load rating | C | 12.84 kN |
| Basic static load rating | C0 | 6.65 kN |
| Fatigue load limit | Pu | 0.28 kN |
| Mass | ≈m | 0.17 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 100 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2599716 | |
| Brand | INA | |
| Base Type | GE20 |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|

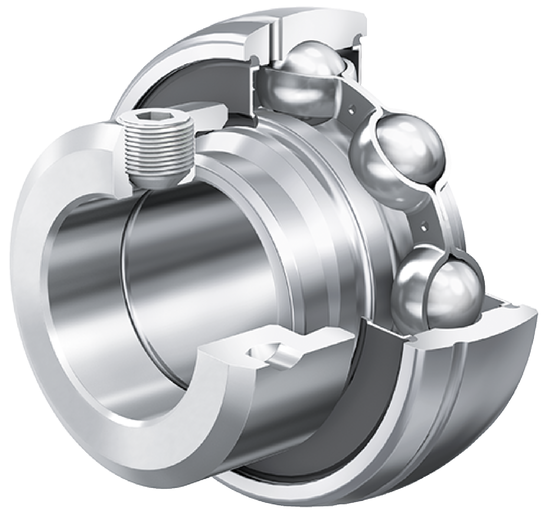

| Short Description | Radial insert ball bearing |
Technical Data16 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 20 mm | |
| Outside Diameter (Dsp) | 47 mm | |
| Total Width (B) | 21.5 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 12,840 N | |
| Basic Static Load Rating, Radial (C0R) | 6,650 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Locking Collar Total Width (B1) | 31 mm | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Distance To Lubrication Hole (Ca) | 4.1 mm | |
| Width Of Flats (W) | 3 mm | |
| Width, Outer Ring (C) | 14 mm | |
| Calculation Factor (F0) | 13.1 | |
| Rib Diameter Inner Ring (D1) | 28.3 mm | |
| Outside Diameter Locking Collar/Locknut (D3) | 33.3 mm | |
| Distance Raceway (S) | 7 mm | |
| Fatigue Load Limit, Radial (Cur) | 280 N |
