Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | GAY15 | |
| Bore diameter | d | 15 mm |
| Outside diameter | D | 40 mm |
| Width | B | 22 mm |
| Basic dynamic load rating | C | 10.1 kN |
| Basic static load rating | C0 | 4.75 kN |
| Fatigue load limit | Pu | 0.202 kN |
| Mass | ≈m | 0.09 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358136 | |
| Brand | INA | |
| Base Type | GAY15 | |
| Old Designation | ["GAY15-NPP-B-FA164"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

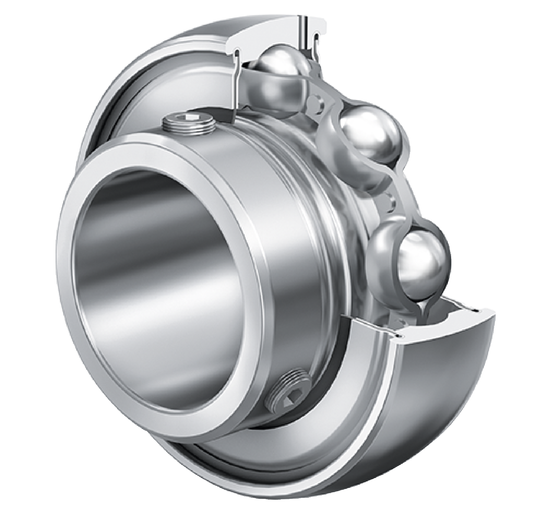

| Construction | Radial insert ball bearings GAY..-NPP-B-FA164, spherical outer ring, location by grub screws, P seals on both sides, for temperatures up to +250°C | |
| Short Description | Radial insert ball bearing |
Technical Data14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 15 mm | |
| Outside Diameter (Dsp) | 40 mm | |
| Total Width (B) | 22 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 10,100 N | |
| Basic Static Load Rating, Radial (C0R) | 4,750 N | |
| Distance To Lubrication Hole (Ca) | 3.4 mm | |
| Width Of Flats (W) | 2.5 mm | |
| Width, Outer Ring (C) | 12 mm | |
| Calculation Factor (F0) | 13 | |
| Rib Diameter Inner Ring (D1) | 23.9 mm | |
| Distance Thread (A) | 4 mm | |
| Distance Raceway (S) | 6 mm | |
| Rib Diameter Sealing Inner Ring (D2) | 22.9 mm | |
| Fatigue Load Limit, Radial (Cur) | 202 N |
