Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 42 mm |
| Outside diameter | D | 68 mm |
| Width | B | 17 mm |
| Mass | ≈m | 0.206 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 409053 | |
| Brand | INA | |
| Base Type | DRS2068 | |
| Old Designation | ["DRS 2068"] | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Seal carrier assemblies DRS, for ZARF, ZARF..-L, with integral rotary shaft seal | |
| Short Description | Seal carrier Assy |

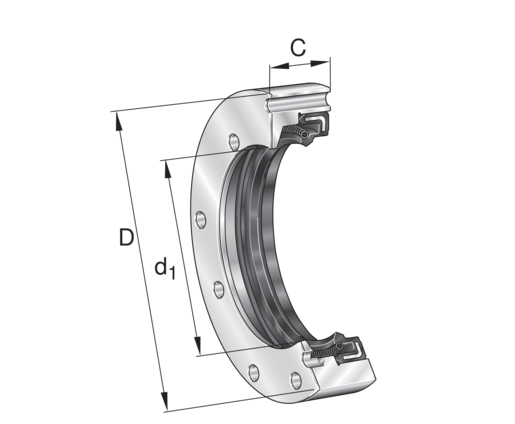

Technical Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Inner Diameter Centering (D1) | 42 mm | |
| Outside Diamater (D) | 68 mm | |
| Width Wave Carrier (C) | 17 mm | |
| Pitch Circle Diameter (Holes) (Z) | 60.4 mm | |
| Width Seal (B) | 8 mm | |
| Inner Diameter Centering Seal Lip (D) | 42 mm | |
| Number Of Screws (1)) | 4 | |
| Outside Diameter Seal (D1) | 55 mm |
