Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | CRB20/83 | |
| Bore diameter | d | 20 mm |
| Outside diameter | D | 83.6 mm |
| Width | B | 25.4 mm |
| Basic dynamic load rating | C | 12.8 kN |
| Basic static load rating | C0 | 6.6 kN |
| Fatigue load limit | Pu | 0.315 kN |
| Mass | ≈m | 0.3 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 357983 | |
| Brand | INA | |
| Base Type | CRB20/83 | |
| Old Designation | ["CRB20/83"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

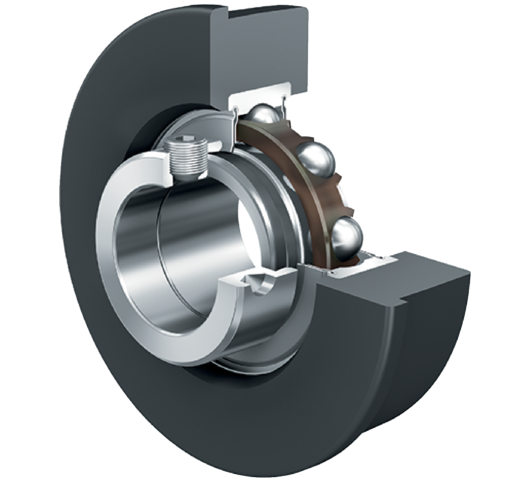

| Construction | Radial insert ball bearings CRB, with rubber interliner, location by eccentric locking collar, P seals on both sides | |
| Short Description | Radial insert ball bearing |
Technical Data16 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 20 mm | |
| Outside Diamater (D) | 83.6 mm | |
| Width, Outer Ring (C) | 25.4 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 12,800 N | |
| Basic Static Load Rating, Radial (C0R) | 6,600 N | |
| Width Total (B2) | 36.2 mm | |
| Load Carrying Capacity (Rubber Interliner) (Load Carryin) | 750 N | |
| Flange Diameter (D1) | 87.4 mm | |
| Distance Raceway To Rubber Interliner Flange Side (S2) | 12.7 mm | |
| Locking Collar Total Width (B1) | 31 mm | |
| Thickness Of Flange (C1) | 4.8 mm | |
| Calculation Factor (F0) | 13.1 | |
| Hardness Rubber Interliner (Shore A) | 80 ° | |
| Flange Diameter Rubber Interliner (D2) | 40 mm | |
| Outside Diameter Locking Collar/Locknut (D3) | 33 mm | |
| Fatigue Load Limit, Radial (Cur) | 315 N |
