Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 89452 | |
| Bore diameter | d | 260 mm |
| Outside diameter | D | 480 mm |
| Width | B | 132 mm |
| Reference speed | nref | 224 r/min |
| Limiting speed | nG | 780 r/min |
| Mass | ≈m | 118.89 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 396124 | |
| Brand | INA | |
| Base Type | 89452 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

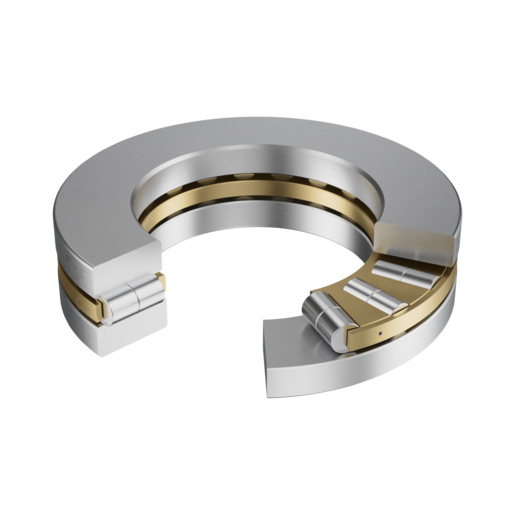

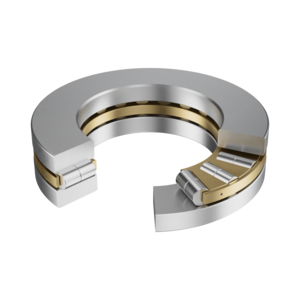

| Construction | Axial cylindrical roller bearings 894, single direction, comprising K894, GS, WS | |
| Short Description | Axial cylindrical roller bearing |
Technical Data13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 260 mm | |
| Outside Diameter (D) | 480 mm | |
| Width (B) | 132 mm | |
| Basic Dynamic Load Rating, Axial (Ca) | 3,600,000 N | |
| Basic Static Load Rating, Axial (C0A) | 14,700,000 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Limiting Speed (Ng) | 780 1/min | |
| Reference Speed (Nϑr) | 224 1/min | |
| Rip Diameter Shaft Washer (D1) | 480 mm | |
| Bore Diameter Housing Washer (D1) | 265 mm | |
| Minimum Chamfer Dimension (Rmin) | 6 mm | |
| Fatigue Load Limit, Axial (Cua) | 1,220,000 N |
