Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 81206 | |
| Bore diameter | d | 30 mm |
| Outside diameter | D | 52 mm |
| Width | B | 16 mm |
| Reference speed | nref | 2650 r/min |
| Limiting speed | nG | 7000 r/min |
| Mass | ≈m | 0.1276 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 396010 | |
| Brand | INA | |
| Base Type | 81206 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Axial cyl roller and cage assy -LS K812..-L, single row | |

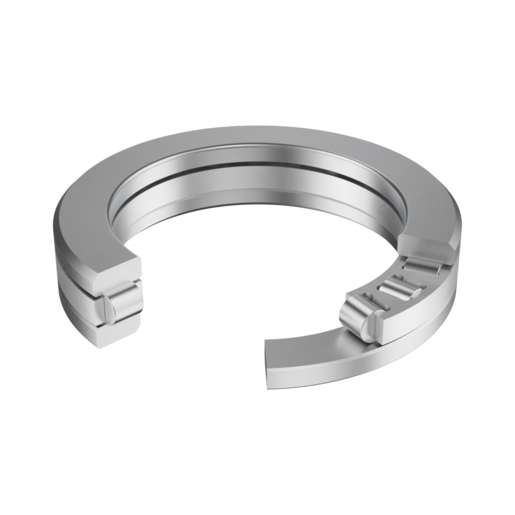

| Short Description | Axial cylindrical roller bearing |
Technical Data16 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 30 mm | |
| Outside Diameter (D) | 52 mm | |
| Width (B) | 16 mm | |
| Basic Dynamic Load Rating, Axial (Ca) | 64,000 N | |
| Basic Static Load Rating, Axial (C0A) | 141,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 50 mm | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Limiting Speed (Ng) | 7,000 1/min | |
| Reference Speed (Nϑr) | 2,650 1/min | |
| Maximum Recess Radius (Ra Max) | 0.6 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 31 mm | |
| Rip Diameter Shaft Washer (D1) | 52 mm | |
| Bore Diameter Housing Washer (D1) | 32 mm | |
| Minimum Chamfer Dimension (Rmin) | 0.6 mm | |
| Fatigue Load Limit, Axial (Cua) | 14,400 N |
