Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 81110 | |
| Bore diameter | d | 50 mm |
| Outside diameter | D | 70 mm |
| Width | B | 14 mm |
| Reference speed | nref | 1840 r/min |
| Limiting speed | nG | 4900 r/min |
| Mass | ≈m | 0.1423 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 395861 | |
| Brand | INA | |
| Base Type | 81110 | |
| Old Designation | ["811 10 TN","81110TVPB"] | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

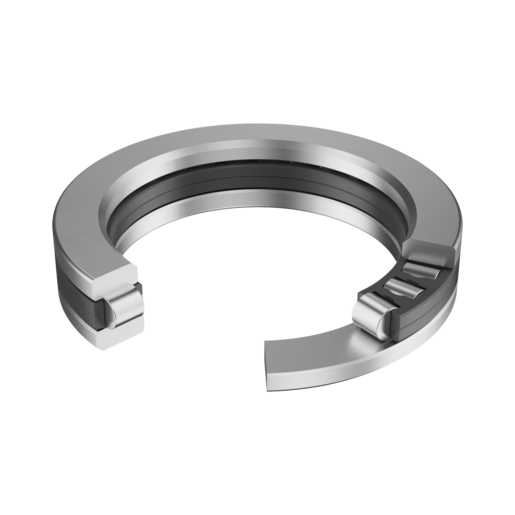

| Construction | Axial cylindrical roller bearings 811, single direction, comprising K811, GS, WS | |
| Short Description | Axial cylindrical roller bearing |
Technical Data15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 50 mm | |
| Outside Diameter (D) | 70 mm | |
| Width (B) | 14 mm | |
| Basic Dynamic Load Rating, Axial (Ca) | 62,000 N | |
| Basic Static Load Rating, Axial (C0A) | 177,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 68 mm | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Limiting Speed (Ng) | 4,900 1/min | |
| Reference Speed (Nϑr) | 1,840 1/min | |
| Maximum Diameter Of Housing Shoulder (Da) | 52 mm | |
| Rip Diameter Shaft Washer (D1) | 70 mm | |
| Bore Diameter Housing Washer (D1) | 52 mm | |
| Minimum Chamfer Dimension (Rmin) | 0.6 mm | |
| Fatigue Load Limit, Axial (Cua) | 17,400 N |
