Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 1110 | |
| Bore diameter | d | 41.275 mm |
| Outside diameter | D | 85 mm |
| Width | B | 42.9 mm |
| Basic dynamic load rating | C | 32.5 kN |
| Basic static load rating | C0 | 20.4 kN |
| Mass | ≈m | 0.9 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 100 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2079454 | |
| Brand | INA | |
| Base Type | 1110 | |
| X Life Marking | XL |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|

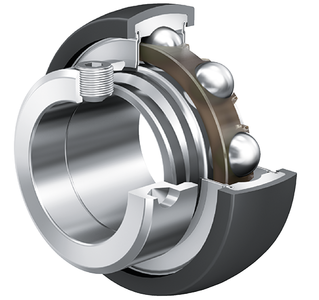

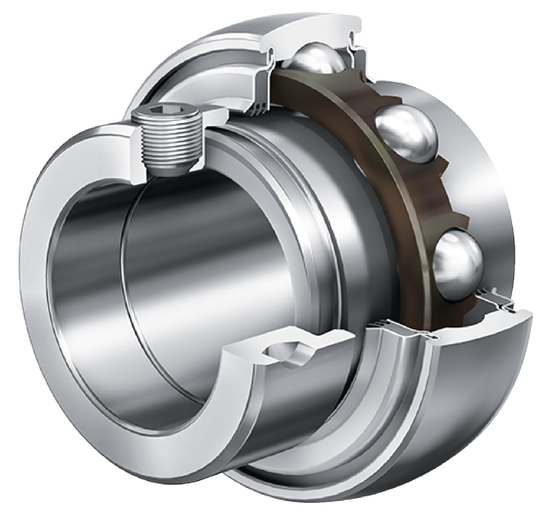

| Short Description | Radial insert ball bearing |
Technical Data15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 41.275 mm | |
| Outside Diameter (Dsp) | 85 mm | |
| Total Width (B) | 42.9 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 32,500 N | |
| Basic Static Load Rating, Radial (C0R) | 20,400 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Locking Collar Total Width (B1) | 56.5 mm | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Width, Outer Ring (C) | 22 mm | |
| Rib Diameter Inner Ring (D1) | 57.9 mm | |
| Sealing Total Width (C2) | 26.4 mm | |
| Outside Diameter Locking Collar/Locknut (D3) | 63 mm | |
| Outside Diameter Seal (D1) | 72.3 mm | |
| Distance Raceway (S) | 21.4 mm | |
| Width Of Flats (Inch) (W) | 0.187 in |
