Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | WS22214 | |
| Bore diameter | d | 70 mm |
| Outside diameter | D | 125 mm |
| Width | B | 38 mm |
| Basic dynamic load rating | C | 211 kN |
| Basic static load rating | C0 | 226 kN |
| Fatigue load limit | Pu | 28.5 kN |
| Limiting speed | nG | 1670 r/min |
| Mass | ≈m | 1.91 kg |
| Internal clearance | C3 (Group 3) — Internal clearance larger than CN | |
| Sealing | 2VSR — Seals on both sides, high temperature | |
| Cage | JPA — Sheet metal cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 180 °C |
Product characteristics7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Design | E1 | Without central rip |
| Bore type | Z | Cylindrical |
| Cage | JPA | Sheet metal cage |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
| Relubrication feature | H40 | Without lubricating groove and holes |
| Type of Seal | 2VSR | Seals on both sides, high temperature |
| Sealing - excess width | WS | Sealing - excess width |
Main Dimensions & Performance Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 70 mm2.756 in |
| Outside diameter | D | 125 mm4.921 in |
| Width | B | 38 mm1.496 in |
| Basic dynamic load rating, radial | Cr | 211,000 N47,437.05 lbf |
| Basic static load rating, radial | C0r | 226,000 N50,809.353 lbf |
| Fatigue load limit, radial | Cur | 28,500 N6,407.374 lbf |
| Limiting speed | nG | 1,670 1/min |
| Mass | ≈m | 1.91 kg4.211 lbs |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 82.5 mm3.248 in |
| Maximum diameter of housing shoulder | Da max | 116 mm4.567 in |
| Maximum recess radius | ra max | 1.5 mm0.059 in |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 1.5 mm0.059 in |
| Bore diameter outer ring | D1 | 113.5 mm4.469 in |
| Raceway diameter of the inner ring | d2 | 82.5 mm3.248 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 180 °C356 °F |
Calculation factors4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | e | 0.23 |
| Dynamic axial load factor | Y1 | 2.95 |
| Dynamic axial load factor | Y2 | 4.4 |
| Static axial load factor | Y0 | 2.89 |
Manufacturer Identity7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 388458 | |
| Brand | FAG | |
| Base Type | WS22214 | |
| Old Designation | ["WS22214-E1-2VSR-H40-C3"] | |
| X Life Marking | XL | |
| SAP material number | 0823085350030 | |
| Base product | 2305091103 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

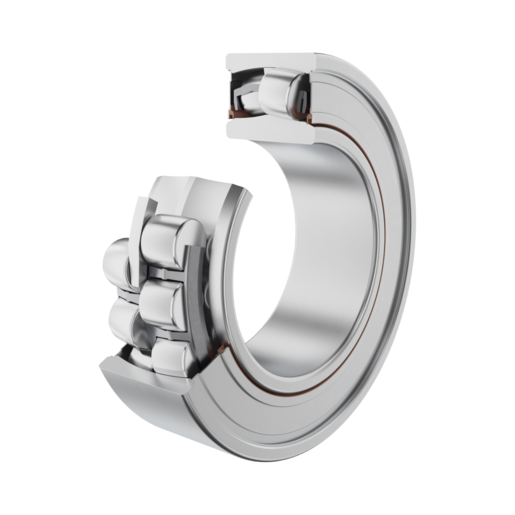

| Construction | Spherical roller bearing WS222..-E1-XL-2VSR-H40, symmetric with cage guidance ring | |
| Short Description | Spherical Roller Bearing |
Technical Data19 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 70 mm | |
| Outside Diamater (D) | 125 mm | |
| Total Width (B) | 38 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 211,000 N | |
| Basic Static Load Rating, Radial (C0R) | 226,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 82.5 mm | |
| Operating Temperature Max. (Tmax) | 180 °C | |
| Limiting Speed (Limiting Spe) | 1,670 1/min | |
| Maximum Recess Radius (Ra Max) | 1.5 mm | |
| Maximum Diameter Of Housing Shoulder (Da) | 116 mm | |
| Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E) | 0.23 | |
| Dynamic Axial Load Factor (Y1) | 2.95 | |
| Bore Diameter Outer Ring (D1) | 113.5 mm | |
| Raceway Diameter Of The Inner Ring (D2) | 82.5 mm | |
| Minimum Chamfer Dimension (Rmin) | 1.5 mm | |
| Static Axial Load Factor (Y0) | 2.89 | |
| Dynamic Axial Load Factor (Y2) | 4.4 | |
| Fatigue Load Limit, Radial (Cur) | 28,500 N |
