Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | VCM7017 | |

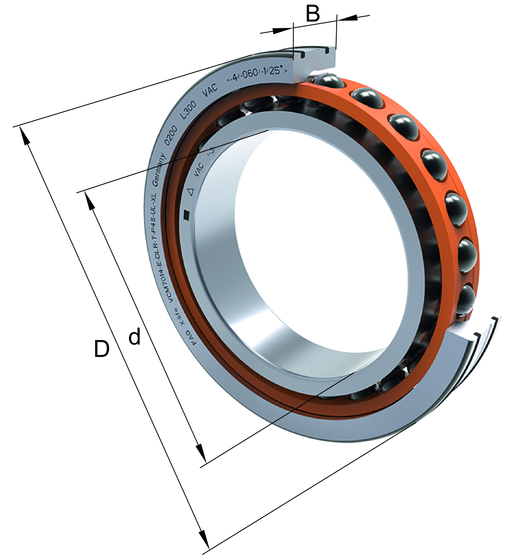

| Bore diameter | d | 85 mm |
| Outside diameter | D | 130 mm |
| Width | B | 22 mm |
| Basic dynamic load rating | C | 85 kN |
| Basic static load rating | C0 | 33.5 kN |
| Fatigue load limit | Pu | 1.64 kN |
| Mass | ≈m | 0.85 kg |
| Precision class | P4S — Tolerance class P4S, FAG standard better than P4 to ISO 492:2023 | |
| Sealing | Without | |
| Cage | T — Laminated fabric cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 100 °C |
Product characteristics7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Preload class | L | Preload light |
| Contact angle | C(17°) | Contact angle 17° |
| Type of Seal | Without | |
| Shape of outer surface | DLR | Direct lubrication, annular slots with O rings |
| Cage | T | Laminated fabric cage |
| Tolerance class | P4S | Tolerance class P4S, FAG standard better than P4 to ISO 492:2023 |
| Arrangement bearing set | U | Single bearing |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 85 mm3.346 in |
| Outside diameter | D | 130 mm5.118 in |
| Width | B | 22 mm0.866 in |
| Basic dynamic load rating, radial | Cr | 85,000 N19,109.712 lbf |
| Basic static load rating, radial | C0r | 33,500 N7,531.475 lbf |
| Fatigue load limit, radial | Cur | 1,640 N368.705 lbf |
| Limiting speed for grease lubrication | nG Grease | 20,000 1/min |
| Limiting speed for oil lubrication | nG Oil | 30,000 1/min |
| Mass | ≈m | 0.85 kg1.874 lbs |
Mounting dimensions11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Diameter shaft shoulder | da | 93 mm3.661 in |
| Diameter shaft shoulder clearance | da | h12 |
| Shoulder diameter outer ring | Da | 122 mm4.803 in |
| Shoulder diameter outer ring clearance | Da | H12 |
| Maximum recess radius | ra max | 1 mm0.039 in |
| Maximum recess radius | ra1 max | 0.6 mm0.024 in |
| Distance ring grooves | BN | 3.3 mm0.13 in |
| Distance ring grooves | BN1 | 3.3 mm0.13 in |
| Distance to lubrication hole | SN | 12.35 mm0.486 in |
| Width of lubricating groove | SB | 2.2 mm0.087 in |
| Distance between the apexes of the pressure cones | a | 27.4 mm1.079 in |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 1.1 mm0.043 in |
| Minimum chamfer dimension | r1 min | 0.6 mm0.024 in |
| Contact angle | α | 17 ° |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 100 °C212 °F |
Capabilities & suitability4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1741309 | |
| Brand | FAG | |
| Base Type | VCM7017 | |
| Base product | 2305080314 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | High speed spindle bearing VCM70..-CDLR, adjusted, in pairs or sets, contact angle α = 17°, with ceramic balls, rings made from Vacrodur, restricted tolerances, for direct oil feed via outer ring, with inserted O rings | |
| Short Description | High speed spindle bearing |
Additional information9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Preload force light | FV L | 165 N37.095 lbf |
| Preload force medium | FV M | 437 N98.246 lbf |
| Preload force heavy | FV H | 918 N206.385 lbf |
| Lift-off force light | KaE L | 483 N108.588 lbf |
| Lift-off force medium | KaE M | 1,309 N294.29 lbf |
| Lift-off force heavy | KaE H | 2,841 N638.714 lbf |
| Axial rigidity light | ca L | 88 N/µm |
| Axial rigidity medium | ca M | 127 N/µm |
| Axial rigidity heavy | ca H | 171 N/µm |
Technical Data31 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 85 mm | |
| Outside Diameter (D) | 130 mm | |
| Width (B) | 22 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 85,000 N | |
| Basic Static Load Rating, Radial (C0R) | 33,500 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Axial Rigidity Heavy (Ca H) | 171 N/µm | |
| Axial Rigidity Light (Ca L) | 88 N/µm | |
| Axial Rigidity Medium (Ca M) | 127 N/µm | |
| Diameter Shaft Shoulder (Da) | 93 mm | |
| Distance Ring Grooves (Bn1) | 3.3 mm | |
| Distance Ring Grooves (Bn) | 3.3 mm | |
| Distance To Lubrication Hole (Sn) | 12.35 mm | |
| Lift Off Force Heavy (Kae H) | 2,841 N | |
| Lift Off Force Light (Kae L) | 483 N | |
| Lift Off Force Medium (Kae M) | 1,309 N | |
| Limiting Speed For Oil Lubrication (Ng Oil) | 30,000 1/min | |
| Preload Force Heavy (Fv H) | 918 N | |
| Preload Force Light (Fv L) | 165 N | |
| Preload Force Medium (Fv M) | 437 N | |
| Shoulder Diameter Outer Ring (Da) | 122 mm | |
| Width Of Lubricating Groove (Sb) | 2.2 mm | |
| Limiting Speed For Grease Lubrication (Ng Grea) | 20,000 1/min | |
| Fatigue Load Limit, Radial (Cur) | 1,640 N | |
| Minimum Chamfer Dimension (Rmin) | 1.1 mm | |
| Maximum Fillet Radius (Ra Max) | 1 mm | |
| Maximum Recess Radius (Ra1 Max) | 0.6 mm | |
| Minimum Chamfer Dimension (R1 Min) | 0.6 mm | |
| Contact Angle (Α) | 17 ° | |
| Distance Between The Apexes Of The Pressure Cones (A) | 27.4 mm |
