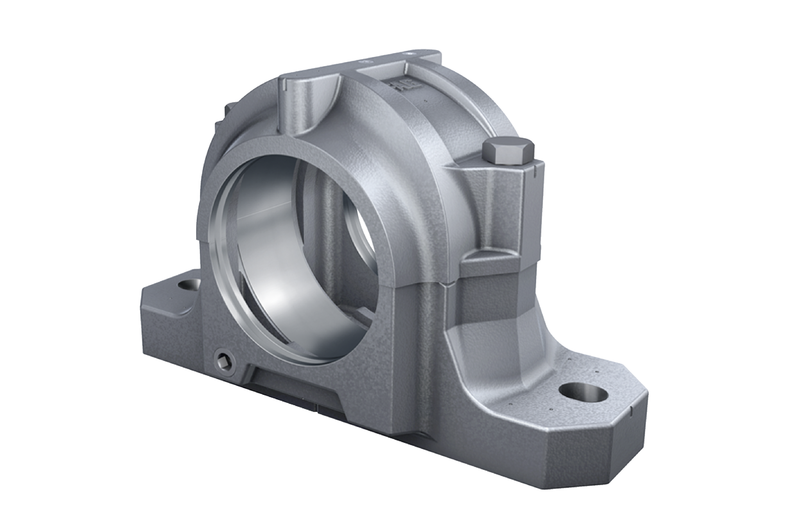

FAG SNV090-F-L

Plummer block housings technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

WidthB: 100 mm
Mass≈m: 3.263 kg
Outside diameter bearingD: 90 mm / 3.543 in
Length basea: 205 mm / 8.071 in
Heighth1: 117 mm / 4.606 in
Width housing bodyg: 100 mm / 3.937 in

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications4 parameters

Core specifications
Parameter	Symbol	Value
Series		SNV090
Width	B	100 mm
Height	H	117 mm
Mass	≈m	3.263 kg

Main Dimensions & Performance Data5 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Outside diameter bearing	D	90 mm3.543 in
Length base	a	205 mm8.071 in
Height	h1	117 mm4.606 in
Width housing body	g	100 mm3.937 in
Mass	≈m	3.263 kg7.194 lbs

Dimensions9 parameters

Dimensions
Parameter	Symbol	Value
Width base	b	60 mm2.362 in
Height base	c	25 mm0.984 in
Base to shaft centerline height	h	60 mm2.362 in
Distance fixing bore	m	170 mm6.693 in
Screw size	s	12.7 mm0.5 in
Size of fixing screws	s	M12
Width slot	u	15 mm0.591 in
Length slot	v	20 mm0.787 in
Wall thickness	g3	12.5 mm0.492 in

Manufacturer Identity5 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		404700
Brand		FAG
Base Type		SNV090
SAP material number		0625389850000
Base product		2305170103

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Split plummer block housing for various bearing designs. The SNV series will be replaced by the new SES series in 2022.
Short Description		Plummer block housing

Technical Data5 parameters

Technical Data
Parameter	Symbol	Value
Width (B)		100 mm
Center Height (H)		60 mm
Total Height (H1)		117 mm
Length Base (A)		205 mm
Height Base Foot (C)		25 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: FAG SNV090-F-L
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
