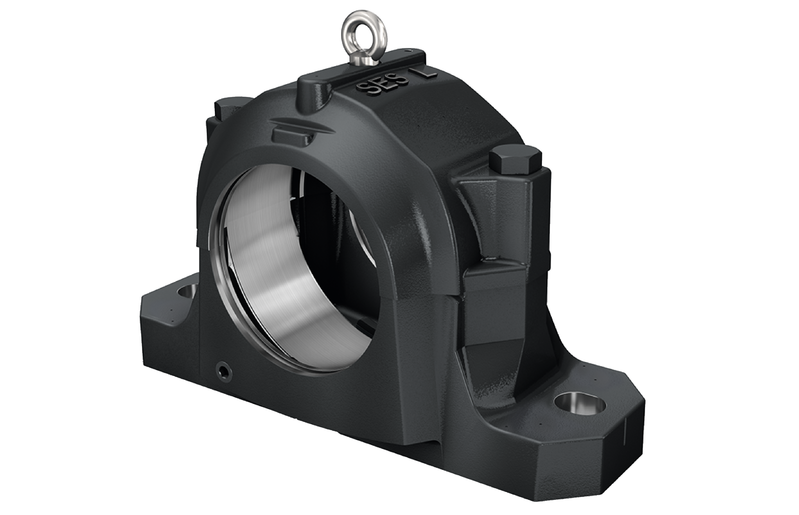

FAG SES530-L Plummer block housing MANUFACTURER PRODUCT VIEW
FAG / Plummer block housings

FAG SES530-L

Plummer block housings technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available
WidthB
220 mm
Mass≈m
48.7 kg
Outside diameter bearingD
270 mm / 10.63 in
Length basea
530 mm / 20.866 in
Heighth1
323 mm / 12.717 in
Width housing bodyg
220 mm / 8.661 in
Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications5 parameters
Core specifications
ParameterSymbolValue
SeriesSES530
WidthB220 mm
HeightH323 mm
Mass≈m48.7 kg
Bearing materialL — Flake graphite cast iron
Product characteristics1 parameter
Product characteristics
ParameterSymbolValue
MaterialLFlake graphite cast iron
Main Dimensions & Performance Data6 parameters
Main Dimensions & Performance Data
ParameterSymbolValue
Outside diameter bearingD270 mm10.63 in
Length basea530 mm20.866 in
Heighth1323 mm12.717 in
Width housing bodyg220 mm8.661 in
Width bearing seatk106 mm4.173 in
Mass≈m48.7 kg107.365 lbs
Dimensions20 parameters
Dimensions
ParameterSymbolValue
Width baseb160 mm6.299 in
Height basec60 mm2.362 in
Base to shaft centerline heighth160 mm6.299 in
Distance fixing borem450 mm17.717 in
Screw sizes31.75 mm1.25 in
Size of fixing screwssM30
Width slotu35 mm1.378 in
Length slotv42 mm1.654 in
Diameter sealingD2192.5 mm7.579 in
Diameter sealing grooveD3202.5 mm7.972 in
Outside diameter sealing labyrinthD5199.2 mm7.843 in
Width sealing grooveg16 mm0.236 in
Distance sealingg2198 mm7.795 in
Wall thicknessg315 mm0.591 in
Distance oil lubricatiang440 mm1.575 in
Distance holes aligned pins m1m1374 mm14.724 in
Distance lubricationn3140 mm5.512 in
Distance lubriaction sealingn4203 mm7.992 in
Bore diameter u1u112 mm0.472 in
Bore diameter u2u226 mm1.024 in
Manufacturer Identity5 parameters
Manufacturer Identity
ParameterSymbolValue
Schaeffler Product Code2018246
BrandFAG
Base TypeSES530
SAP material number0860887690000
Base product2305170103
Product Identity2 parameters
Product Identity
ParameterSymbolValue
ConstructionSplit plummer block housing for various bearing designs. The SNV series will be replaced by the new SES series in 2022.
Short DescriptionPlummer block housing
Technical Data6 parameters
Technical Data
ParameterSymbolValue
Width (B)220 mm
Center Height (H)160 mm
Diameter Shaft (D)192.5 mm
Total Height (H1)323 mm
Length Base (A)530 mm
Height Base Foot (C)60 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity
FAG SES530-L
Document matching
Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
