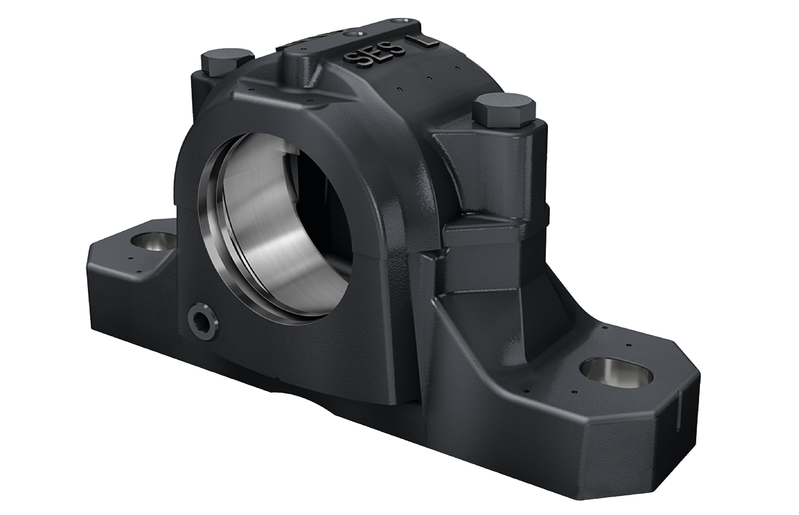

FAG SES211-L Plummer block housing MANUFACTURER PRODUCT VIEW
FAG / Plummer block housings

FAG SES211-L

Plummer block housings technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available
WidthB
95 mm
Mass≈m
4.21 kg
Outside diameter bearingD
100 mm / 3.937 in
Length basea
255 mm / 10.039 in
Heighth1
128 mm / 5.039 in
Width housing bodyg
95 mm / 3.74 in
Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications5 parameters
Core specifications
ParameterSymbolValue
SeriesSES211
WidthB95 mm
HeightH128 mm
Mass≈m4.21 kg
Bearing materialL — Flake graphite cast iron
Product characteristics1 parameter
Product characteristics
ParameterSymbolValue
MaterialLFlake graphite cast iron
Main Dimensions & Performance Data6 parameters
Main Dimensions & Performance Data
ParameterSymbolValue
Outside diameter bearingD100 mm3.937 in
Length basea255 mm10.039 in
Heighth1128 mm5.039 in
Width housing bodyg95 mm3.74 in
Width bearing seatk44 mm1.732 in
Mass≈m4.21 kg9.281 lbs
Dimensions20 parameters
Dimensions
ParameterSymbolValue
Width baseb70 mm2.756 in
Height basec28 mm1.102 in
Base to shaft centerline heighth70 mm2.756 in
Distance fixing borem210 mm8.268 in
Screw sizes15.875 mm0.625 in
Size of fixing screwssM16
Width slotu18 mm0.709 in
Length slotv24 mm0.945 in
Diameter sealingD277 mm3.031 in
Diameter sealing grooveD385.5 mm3.366 in
Outside diameter sealing labyrinthD583.2 mm3.276 in
Width sealing grooveg15 mm0.197 in
Distance sealingg277 mm3.031 in
Wall thicknessg312 mm0.472 in
Distance oil lubricatiang434 mm1.339 in
Distance holes aligned pins m1m1174 mm6.85 in
Distance lubricationn356 mm2.205 in
Distance lubriaction sealingn481 mm3.189 in
Bore diameter u1u16 mm0.236 in
Bore diameter u2u214 mm0.551 in
Manufacturer Identity5 parameters
Manufacturer Identity
ParameterSymbolValue
Schaeffler Product Code1403955
BrandFAG
Base TypeSES211
SAP material number0856673900000
Base product2305170103
Product Identity2 parameters
Product Identity
ParameterSymbolValue
ConstructionSplit plummer block housing for various bearing designs. The SNV series will be replaced by the new SES series in 2022.
Short DescriptionPlummer block housing
Technical Data6 parameters
Technical Data
ParameterSymbolValue
Width (B)95 mm
Center Height (H)70 mm
Diameter Shaft (D)77 mm
Total Height (H1)128 mm
Length Base (A)255 mm
Height Base Foot (C)28 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity
FAG SES211-L
Document matching
Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.

Look up another model or check drawing requirements →
