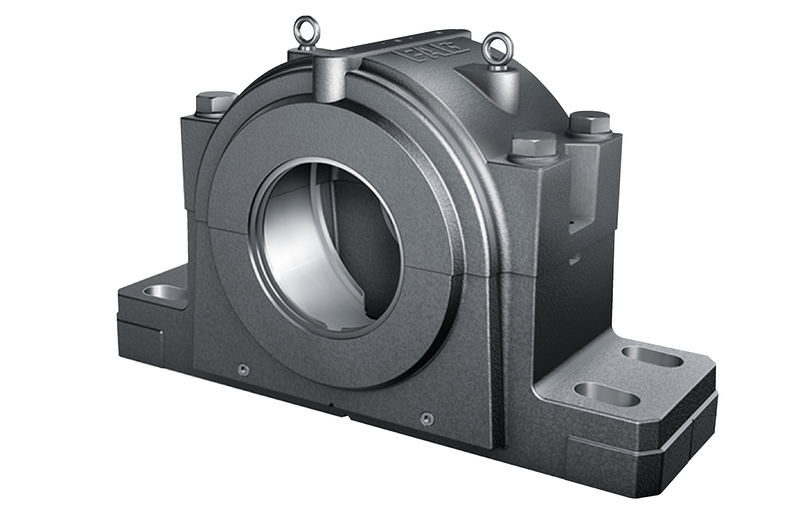

FAG SAF536X0607U Plummer block housing, 2 parts, SAF MANUFACTURER PRODUCT VIEW
FAG / Plummer block housing, 2 parts, saf

FAG SAF536X0607U

Plummer block housing, 2 parts, saf technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available
Mass≈m
106.5 kg
Shaft diameter inchd1
163.512 mm / 6.438 in
Shaft diameterd1
163.512 mm / 6.438 in
Length foota
679.45 mm / 26.75 in
Total heighth1
377.825 mm / 14.875 in
Width housing bodyg
244.475 mm / 9.625 in
Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications1 parameter
Core specifications
ParameterSymbolValue
Mass≈m106.5 kg
Main Dimensions & Performance Data6 parameters
Main Dimensions & Performance Data
ParameterSymbolValue
Shaft diameter inchd1163.512 mm6.438 in
Shaft diameterd1163.512 mm6.438 in
Length foota679.45 mm26.75 in
Total heighth1377.825 mm14.875 in
Width housing bodyg244.475 mm9.625 in
Mass≈m106.5 kg234.792 lbs
Dimensions11 parameters
Dimensions
ParameterSymbolValue
Width footb180.975 mm7.125 in
Height footc76.2 mm3 in
Outside diameter bearingD320 mm12.598 in
Offset Bearing centree5.08 mm0.2 in
Distance shaft axish190.5 mm7.5 in
Width bearing seatk95.8 mm3.772 in
Distance mounting holesm565.15 mm22.25 in
Width bore spacingn117.475 mm4.625 in
Screw sizes25.4 mm1 in
Width oblong holev28.575 mm1.125 in
Lenght oblong holev34.925 mm1.375 in
Manufacturer Identity5 parameters
Manufacturer Identity
ParameterSymbolValue
Schaeffler Product Code1284664
BrandFAG
Base TypeSAF536X0607U
SAP material number0866759740000
Base product2305170109_NoSuffix
Product Identity2 parameters
Product Identity
ParameterSymbolValue
Constructionsplit bearing housing, foot with 4 extended mounting slots
Short DescriptionPlummer block housing, 2 parts, SAF
Technical Data4 parameters
Technical Data
ParameterSymbolValue
Length (L)26.75 in
Width (B)9.625 in
Diameter Shaft (D)6.438 in
Lenght Oblong Hole (V)1.375 in

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity
FAG SAF536X0607U
Document matching
Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
