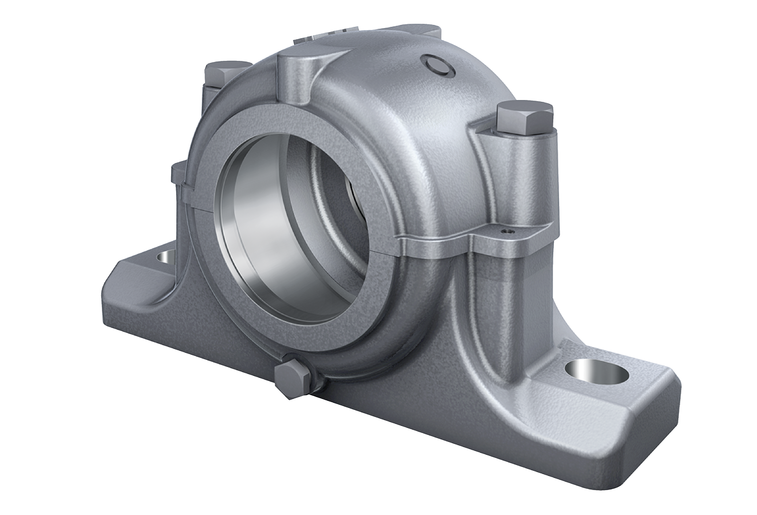

FAG S3028-H-N-FZ-AB-L

Plummer block housings technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

WidthB: 170 mm
Mass≈m: 24.6 kg
Shaft diameterd1: 125 mm / 4.921 in
Length basea: 420 mm / 16.535 in
Total heighth1: 259 mm / 10.197 in
Width housingg: 170 mm / 6.693 in

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications4 parameters

Core specifications
Parameter	Symbol	Value
Series		S3028
Width	B	170 mm
Height	H	259 mm
Mass	≈m	24.6 kg

Main Dimensions & Performance Data5 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Shaft diameter	d1	125 mm4.921 in
Length base	a	420 mm16.535 in
Total height	h1	259 mm10.197 in
Width housing	g	170 mm6.693 in
Mass	≈m	24.6 kg54.234 lbs

Dimensions11 parameters

Dimensions
Parameter	Symbol	Value
Connection thread for lubrication		M10x1
Width base	b	120 mm4.724 in
Height foot	c	45 mm1.772 in
Outside diameter bearing	D	210 mm8.268 in
Wall thickness g3	g3	21 mm0.827 in
Distance shaft axis	h	140 mm5.512 in
Distance fixing bore	m	350 mm13.78 in
Size of fixing screw	s	M24
Screw size	s	25.4 mm1 in
Width oblong hole	u	30 mm1.181 in
Lenght oblong hole	v	36 mm1.417 in

Manufacturer Identity5 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		404780
Brand		FAG
Base Type		S3028
SAP material number		0384594260000
Base product		2305170104

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Split plummer block housing for spherical roller bearings with conical bore and clamping sleeve
Short Description		Plummer block housing

Technical Data6 parameters

Technical Data
Parameter	Symbol	Value
Width (B)		170 mm
Center Height (H)		140 mm
Diameter Shaft (D)		125 mm
Total Height (H1)		259 mm
Length Base (A)		420 mm
Height Base Foot (C)		45 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: FAG S3028-H-N-FZ-AB-L
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
